Developed by Stijn Klop and Mark Bakker
This Notebook contains a number of examples and tests with synthetic data. The purpose of this notebook is to demonstrate the noise model of Pastas.
In this Notebook, heads are generated with a known response function. Next, Pastas is used to solve for the parameters of the model it is verified that Pastas finds the correct parameters back. Several different types of errors are introduced in the generated heads and it is tested whether the confidence intervals computed by Pastas are reasonable.
[1]:
import numpy as np import matplotlib.pyplot as plt from scipy.special import gammainc, gammaincinv import pandas as pd import pastas as ps ps.show_versions()
Python version: 3.7.8 | packaged by conda-forge | (default, Jul 31 2020, 02:37:09) [Clang 10.0.1 ] Numpy version: 1.18.5 Scipy version: 1.4.0 Pandas version: 1.1.2 Pastas version: 0.16.0b Matplotlib version: 3.1.3
The rainfall and reference evaporation are read from file and truncated for the period 1980 - 2000. The rainfall and evaporation series are taken from KNMI station De Bilt. The reading of the data is done using Pastas.
Heads are generated with a Gamma response function which is defined below.
[2]:
rain = ps.read.read_knmi('../examples/data/etmgeg_260.txt', variables='RH').series evap = ps.read.read_knmi('../examples/data/etmgeg_260.txt', variables='EV24').series
INFO: Inferred frequency for time series RH 260: freq=D INFO: Inferred frequency for time series EV24 260: freq=D
[3]:
def gamma_tmax(A, n, a, cutoff=0.999): return gammaincinv(n, cutoff) * a def gamma_step(A, n, a, cutoff=0.999): tmax = gamma_tmax(A, n, a, cutoff) t = np.arange(0, tmax, 1) s = A * gammainc(n, t / a) return s def gamma_block(A, n, a, cutoff=0.999): # returns the gamma block response starting at t=0 with intervals of delt = 1 s = gamma_step(A, n, a, cutoff) return np.append(s[0], s[1:] - s[:-1])
The Gamma response function requires 3 input arguments; A, n and a. The values for these parameters are defined along with the parameter d, the base groundwater level. The response function is created using the functions defined above.
[4]:

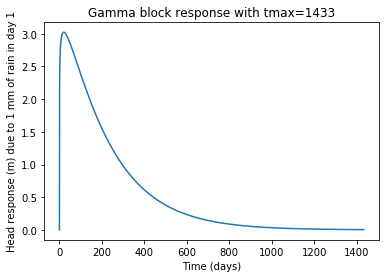

Atrue = 800 ntrue = 1.1 atrue = 200 dtrue = 20 h = gamma_block(Atrue, ntrue, atrue) tmax = gamma_tmax(Atrue, ntrue, atrue) plt.plot(h) plt.xlabel('Time (days)') plt.ylabel('Head response (m) due to 1 mm of rain in day 1') plt.title('Gamma block response with tmax=' + str(int(tmax)));
Rainfall is used as input series for this example. No errors are introduced. A Pastas model is created to test whether Pastas is able to . The generated head series is purposely not generated with convolution. Heads are computed for the period 1990 - 2000. Computations start in 1980 as a warm-up period. Convolution is not used so that it is clear how the head is computed. The computed head at day 1 is the head at the end of day 1 due to rainfall during day 1. No errors are introduced.
[5]:

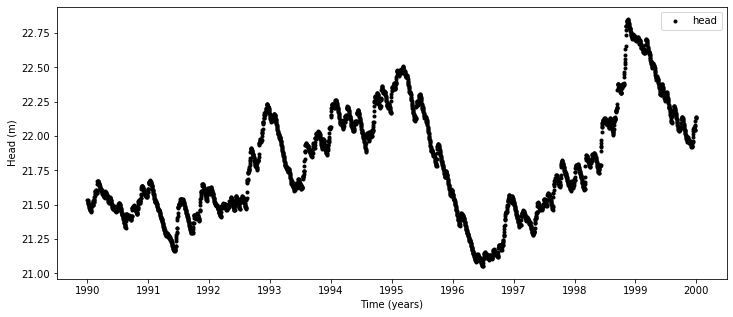

step = gamma_block(Atrue, ntrue, atrue)[1:] lenstep = len(step) h = dtrue * np.ones(len(rain) + lenstep) for i in range(len(rain)): h[i:i + lenstep] += rain[i] * step head = pd.DataFrame(index=rain.index, data=h[:len(rain)],) head = head['1990':'1999'] plt.figure(figsize=(12,5)) plt.plot(head,'k.', label='head') plt.legend(loc=0) plt.ylabel('Head (m)') plt.xlabel('Time (years)');
The next step is to create a Pastas model. The head generated using the Gamma response function is used as input for the Pastas model.
A StressModel instance is created and added to the Pastas model. The StressModel intance takes the rainfall series as input aswell as the type of response function, in this case the Gamma response function ( ps.Gamma).
StressModel
ps.Gamma
The Pastas model is solved without a noise model since there is no noise present in the data. The results of the Pastas model are plotted.
[6]:

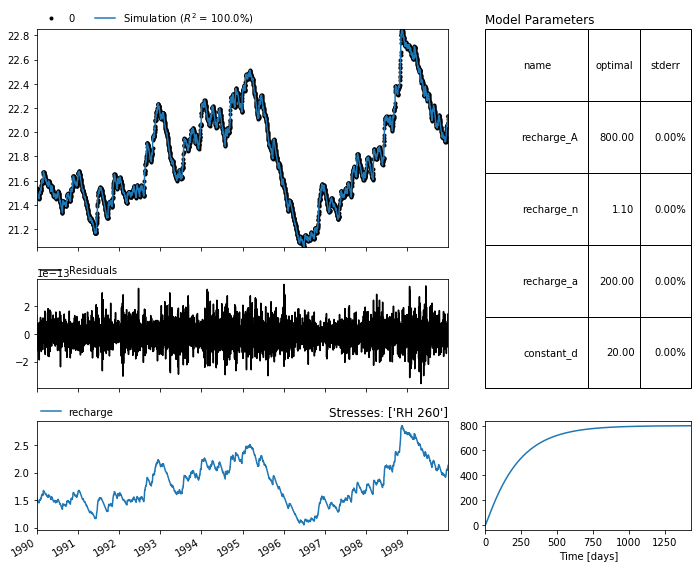

ml = ps.Model(head) sm = ps.StressModel(rain, ps.Gamma, name='recharge', settings='prec') ml.add_stressmodel(sm) ml.solve(noise=False, ftol=1e-8) ml.plots.results();
INFO: Inferred frequency for time series 0: freq=D INFO: Inferred frequency for time series RH 260: freq=D
Fit report 0 Fit Statistics ============================================= nfev 11 EVP 100.0 nobs 3652 R2 1.0 noise False RMSE 0.0 tmin 1990-01-01 00:00:00 AIC nan tmax 1999-12-31 00:00:00 BIC nan freq D Obj 0.0 warmup 3650 days 00:00:00 ___ solver LeastSquares Interpolated No Parameters (4 were optimized) ============================================= optimal stderr initial vary recharge_A 800.0 ±0.00% 217.313623 True recharge_n 1.1 ±0.00% 1.000000 True recharge_a 200.0 ±0.00% 10.000000 True constant_d 20.0 ±0.00% 21.798909 True Parameter correlations |rho| > 0.5 ============================================= recharge_A recharge_a 0.68 constant_d -0.99 recharge_n recharge_a -0.87 recharge_a constant_d -0.65
The results of the Pastas model show the calibrated parameters for the Gamma response function. The parameters calibrated using pastas are equal to the Atrue, ntrue, atrue and dtrue parameters defined above. The Explained Variance Percentage for this example model is 100%.
Atrue
ntrue
atrue
dtrue
The results plots show that the Pastas simulation is identical to the observed groundwater. The residuals of the simulation are shown in the plot together with the response function and the contribution for each stress.
Below the Pastas block response and the true Gamma response function are plotted.
[7]:

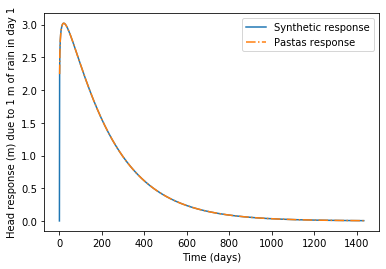

plt.plot(gamma_block(Atrue, ntrue, atrue), label='Synthetic response') plt.plot(ml.get_block_response('recharge'), '-.', label='Pastas response') plt.legend(loc=0) plt.ylabel('Head response (m) due to 1 m of rain in day 1') plt.xlabel('Time (days)');
In the next test example noise is added to the observations of the groundwater head. The noise is normally distributed noise with a mean of 0 and a standard deviation of 1 and is scaled with the standard deviation of the head.
The noise series is added to the head series created in the previous example.
[8]:
random_seed = np.random.RandomState(15892) noise = random_seed.normal(0,1,len(head)) * np.std(head.values) * 0.5 head_noise = head[0] + noise
A pastas model is created using the head with noise. A stress model is added to the Pastas model and the model is solved.
[9]:
ml2 = ps.Model(head_noise) sm2 = ps.StressModel(rain, ps.Gamma, name='recharge', settings='prec') ml2.add_stressmodel(sm2) ml2.solve(noise=True) ml2.plots.results();
Fit report 0 Fit Statistics ================================================== nfev 10 EVP 79.43 nobs 3652 R2 0.79 noise True RMSE 0.2 tmin 1990-01-01 00:00:00 AIC -0.01 tmax 1999-12-31 00:00:00 BIC 31.0 freq D Obj 74.75 warmup 3650 days 00:00:00 ___ solver LeastSquares Interpolated No Parameters (5 were optimized) ================================================== optimal stderr initial vary recharge_A 811.846087 ±1.30% 217.313623 True recharge_n 1.047629 ±1.66% 1.000000 True recharge_a 218.803031 ±3.36% 10.000000 True constant_d 19.979989 ±0.12% 21.804260 True noise_alpha 0.186773 ±65.40% 1.000000 True Parameter correlations |rho| > 0.5 ================================================== recharge_A recharge_a 0.70 constant_d -0.99 recharge_n recharge_a -0.86 recharge_a constant_d -0.67
The results of the simulation show that Pastas is able to filter the noise from the observed groundwater head. The simulated groundwater head and the generated synthetic head are plotted below. The parameters found with the Pastas optimization are similair to the original parameters of the Gamma response function.
[10]:

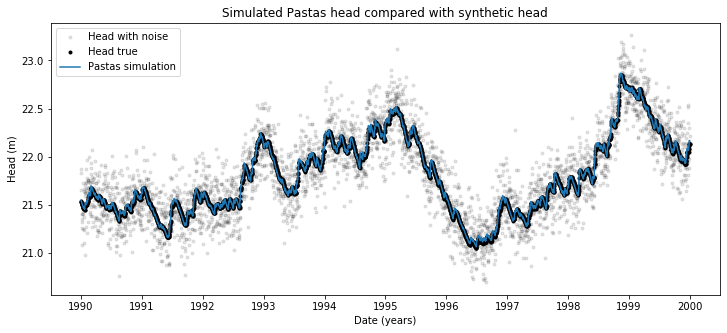

plt.figure(figsize=(12,5)) plt.plot(head_noise, '.k', alpha=0.1, label='Head with noise') plt.plot(head, '.k', label='Head true') plt.plot(ml2.simulate(), label='Pastas simulation') plt.title('Simulated Pastas head compared with synthetic head') plt.legend(loc=0) plt.ylabel('Head (m)') plt.xlabel('Date (years)');
In this example correlated noise is added to the observed head. The correlated noise is generated using the noise series created in the previous example. The correlated noise is implemented as exponential decay using the following formula:
where \(n_{c}\) is the correlated noise, \(\alpha\) is the noise decay parameter and \(n\) is the uncorrelated noise. The noise series that is created is added to the observed groundwater head.
[11]:
noise_corr = np.zeros(len(noise)) noise_corr[0] = noise[0] alphatrue = 2 for i in range(1, len(noise_corr)): noise_corr[i] = np.exp(-1/alphatrue) * noise_corr[i - 1] + noise[i] head_noise_corr = head[0] + noise_corr
A Pastas model is created using the head with correlated noise as input. A stressmodel is added to the model and the Pastas model is solved. The results of the model are plotted.
[12]:

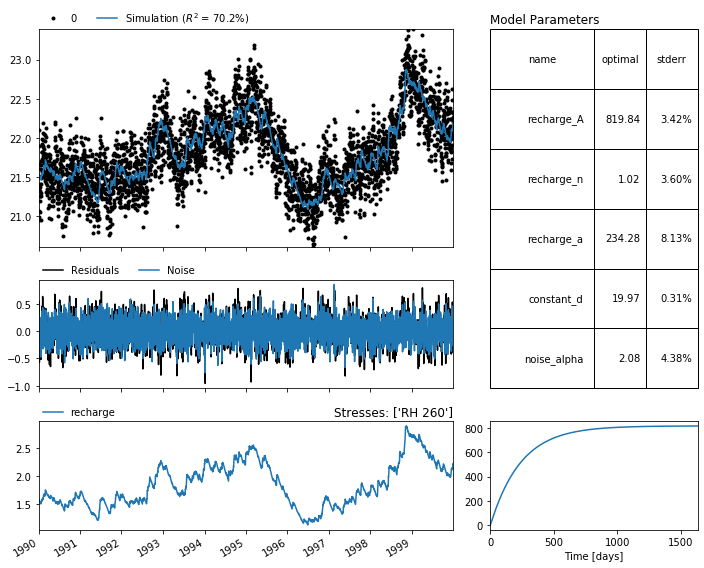

ml3 = ps.Model(head_noise_corr) sm3 = ps.StressModel(rain, ps.Gamma, name='recharge', settings='prec') ml3.add_stressmodel(sm3) ml3.solve(noise=True) ml3.plots.results();
Fit report 0 Fit Statistics ================================================= nfev 11 EVP 70.22 nobs 3652 R2 0.7 noise True RMSE 0.26 tmin 1990-01-01 00:00:00 AIC -0.98 tmax 1999-12-31 00:00:00 BIC 30.04 freq D Obj 74.81 warmup 3650 days 00:00:00 ___ solver LeastSquares Interpolated No Parameters (5 were optimized) ================================================= optimal stderr initial vary recharge_A 819.843211 ±3.42% 217.313623 True recharge_n 1.018003 ±3.60% 1.000000 True recharge_a 234.284580 ±8.13% 10.000000 True constant_d 19.971506 ±0.31% 21.812483 True noise_alpha 2.076657 ±4.38% 1.000000 True Parameter correlations |rho| > 0.5 ================================================= recharge_A recharge_a 0.70 constant_d -0.99 recharge_n recharge_a -0.82 recharge_a constant_d -0.68
The Pastas model is able to calibrate the model parameters fairly well. The calibrated parameters are close to the true values defined above. The noise_alpha parameter calibrated by Pastas is close the the alphatrue parameter defined for the correlated noise series.
noise_alpha
alphatrue
Below the head simulated with the Pastas model is plotted together with the head series and the head series with the correlated noise.
[13]:

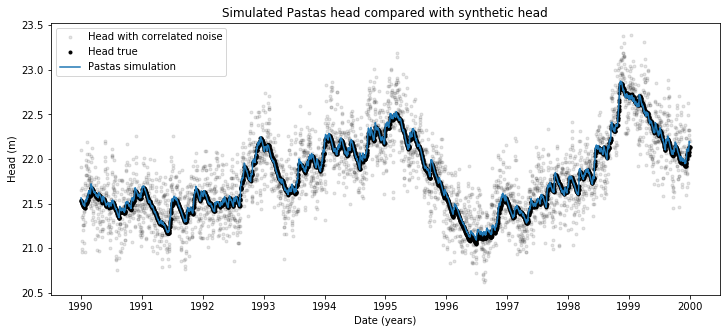

plt.figure(figsize=(12,5)) plt.plot(head_noise_corr, '.k', alpha=0.1, label='Head with correlated noise') plt.plot(head, '.k', label='Head true') plt.plot(ml3.simulate(), label='Pastas simulation') plt.title('Simulated Pastas head compared with synthetic head') plt.legend(loc=0) plt.ylabel('Head (m)') plt.xlabel('Date (years)');
