ARMA(1,1) Noise Model for Pastas#
R.A. Collenteur, University of Graz, May 2020
In this notebook an Autoregressive-Moving-Average (ARMA(1,1)) noise model is developed for Pastas models. This new noise model is tested against synthetic data generated with NumPy or Statsmodels’ ARMA model. This noise model is tested on head time series with a regular time step.
Warning
It should be noted that the time step may be non-equidistant in this formulation, but this model is not yet tested for irregular time steps.
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from scipy.special import gammainc, gammaincinv
import pastas as ps
ps.set_log_level("ERROR")
ps.show_versions()
/tmp/ipykernel_691/1920381820.py:2: DeprecationWarning:
Pyarrow will become a required dependency of pandas in the next major release of pandas (pandas 3.0),
(to allow more performant data types, such as the Arrow string type, and better interoperability with other libraries)
but was not found to be installed on your system.
If this would cause problems for you,
please provide us feedback at https://github.com/pandas-dev/pandas/issues/54466
import pandas as pd
Python version: 3.11.6
NumPy version: 1.26.4
Pandas version: 2.2.0
SciPy version: 1.12.0
Matplotlib version: 3.8.3
Numba version: 0.59.0
LMfit version: 1.2.2
Latexify version: Not Installed
Pastas version: 1.4.0
1. Develop the ARMA(1,1) Noise Model for Pastas#
The following formula is used to calculate the noise according to the ARMA(1,1) process:
$$\upsilon(t_i) = r(t_i) - r(t_{i-1}) \text{e}^{-\Delta t_i / \alpha} - \upsilon(t_{i-1}) \text{e}^{-\Delta t_i / \beta}$$
where $\upsilon$ is the noise, $\Delta t_i$ the time step between the residuals ($r$), and respectively $\alpha$ [days] and $\beta$ [days] the parameters of the AR and MA parts of the model. The model is named ArmaModel and can be found in noisemodel.py. It is added to a Pastas model as follows: ml.add_noisemodel(ps.ArmaModel())
2. Generate synthetic head time series#
# Read in some data
rain = (
pd.read_csv("../examples/data/rain_260.csv", index_col=0, parse_dates=[0]).squeeze()
/ 1000
)
# Set the True parameters
Atrue = 800
ntrue = 1.1
atrue = 200
dtrue = 20
# Generate the head
step = ps.Gamma().block([Atrue, ntrue, atrue])
h = dtrue * np.ones(len(rain) + step.size)
for i in range(len(rain)):
h[i : i + step.size] += rain[i] * step
head = pd.DataFrame(
index=rain.index,
data=h[: len(rain)],
)
head = head["1990":"2015"]

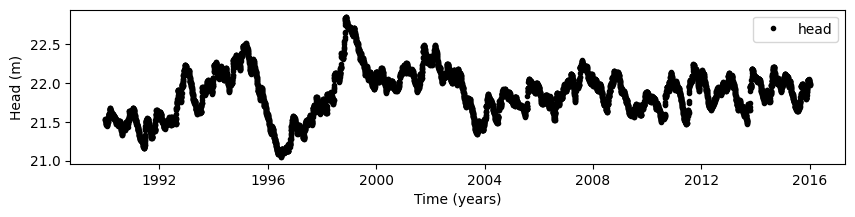

# Plot the head without noise
plt.figure(figsize=(10, 2))
plt.plot(head, "k.", label="head")
plt.legend(loc=0)
plt.ylabel("Head (m)")
plt.xlabel("Time (years)");
/tmp/ipykernel_691/3968071197.py:17: FutureWarning: Series.__getitem__ treating keys as positions is deprecated. In a future version, integer keys will always be treated as labels (consistent with DataFrame behavior). To access a value by position, use `ser.iloc[pos]`
h[i : i + step.size] += rain[i] * step
3. Generate ARMA(1,1) noise and add it to the synthetic heads#
In the following code-block, noise is generated using an ARMA(1,1) process using NumPy. An alternative procedure is available from Statsmodels (commented out now). More information about the ARMA model can be found on the statsmodels website. The noise is added to the head series generated in the previous code-block.
# reproduction of random numbers
np.random.seed(1234)
alpha = 0.95
beta = 0.1
# generate samples using Statsmodels
# import statsmodels.api as stats
# ar = np.array([1, -alpha])
# ma = np.r_[1, beta]
# arma = stats.tsa.ArmaProcess(ar, ma)
# noise = arma.generate_sample(head[0].index.size)*np.std(head.values) * 0.1
# generate samples using NumPy
random_seed = np.random.RandomState(1234)
noise = random_seed.normal(0, 1, len(head)) * np.std(head.values) * 0.1
a = np.zeros_like(head[0])
for i in range(1, noise.size):
a[i] = noise[i] + noise[i - 1] * beta + a[i - 1] * alpha
head_noise = head[0] + a

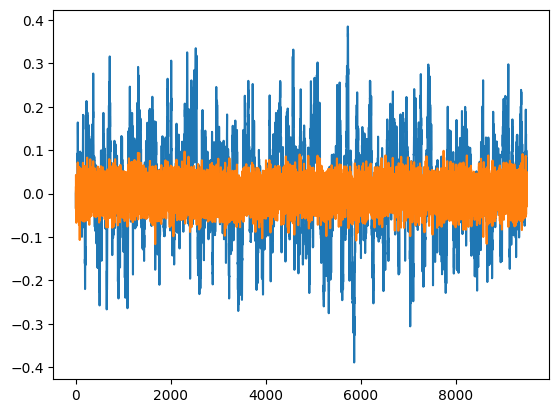

plt.plot(a)
plt.plot(noise)
[<matplotlib.lines.Line2D at 0x7f7612aed9d0>]
4. Create and solve a Pastas Model#
ml = ps.Model(head_noise)
sm = ps.StressModel(rain, ps.Gamma(), name="recharge", settings="prec")
ml.add_stressmodel(sm)
ml.add_noisemodel(ps.ArmaModel())
ml.solve(tmin="1991", tmax="2015-06-29", noise=True, report=True)
axes = ml.plots.results(figsize=(10, 5))
axes[-2].plot(ps.Gamma().step([Atrue, ntrue, atrue]))
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/v1.4.0/lib/python3.11/site-packages/pastas/timeseries_utils.py:90: FutureWarning: Day.delta is deprecated and will be removed in a future version. Use pd.Timedelta(obj) instead
if hasattr(offset, "delta"):
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/v1.4.0/lib/python3.11/site-packages/pastas/timeseries_utils.py:90: FutureWarning: Day.delta is deprecated and will be removed in a future version. Use pd.Timedelta(obj) instead
if hasattr(offset, "delta"):
Fit report 0 Fit Statistics
=================================================
nfev 29 EVP 88.33
nobs 8946 R2 0.88
noise True RMSE 0.11
tmin 1991-01-01 00:00:00 AIC -62720.73
tmax 2015-06-29 00:00:00 BIC -62678.14
freq D Obj 4.03
warmup 3650 days 00:00:00 ___
solver LeastSquares Interp. No
Parameters (6 optimized)
=================================================
optimal initial vary stderr
recharge_A 734.086018 217.313623 True ±3.17%
recharge_n 1.089086 1.000000 True ±0.88%
recharge_a 191.477259 10.000000 True ±4.99%
constant_d 20.177978 21.873653 True ±0.27%
noise_alpha 20.575383 1.000000 True ±7.18%
noise_beta 0.433754 1.000000 True ±4.63%
[<matplotlib.lines.Line2D at 0x7f760de4f810>]
5. Did we find back the original ARMA parameters?#
print(np.exp(-1.0 / ml.parameters.loc["noise_alpha", "optimal"]).round(2), "vs", alpha)
print(
np.exp(-1.0 / np.abs(ml.parameters.loc["noise_beta", "optimal"])).round(2),
"vs.",
beta,
)
0.95 vs 0.95
0.1 vs. 0.1
The estimated parameters for the noise model are almost the same as the true parameters, showing that the model works for regular time steps.

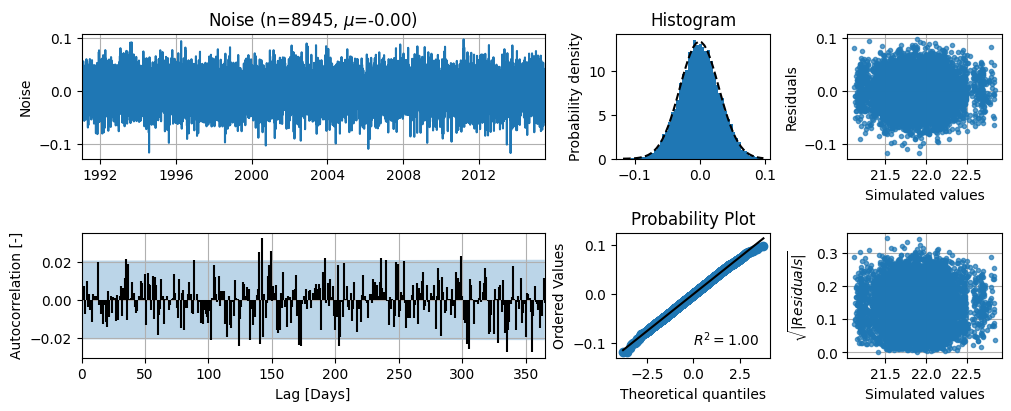

6. So is the autocorrelation removed correctly?#
ml.plots.diagnostics(figsize=(10, 4));
That seems okay. It is important to understand that this noisemodel will only help in removing autocorrelations at the first time lag, but not at larger time lags, compared to its AR(1) counterpart.
7. What happens if we use an AR(1) model?#
ml = ps.Model(head_noise)
sm = ps.StressModel(rain, ps.Gamma(), name="recharge", settings="prec")
ml.add_stressmodel(sm)
ml.solve(tmin="1991", tmax="2015-06-29", noise=True, report=False)

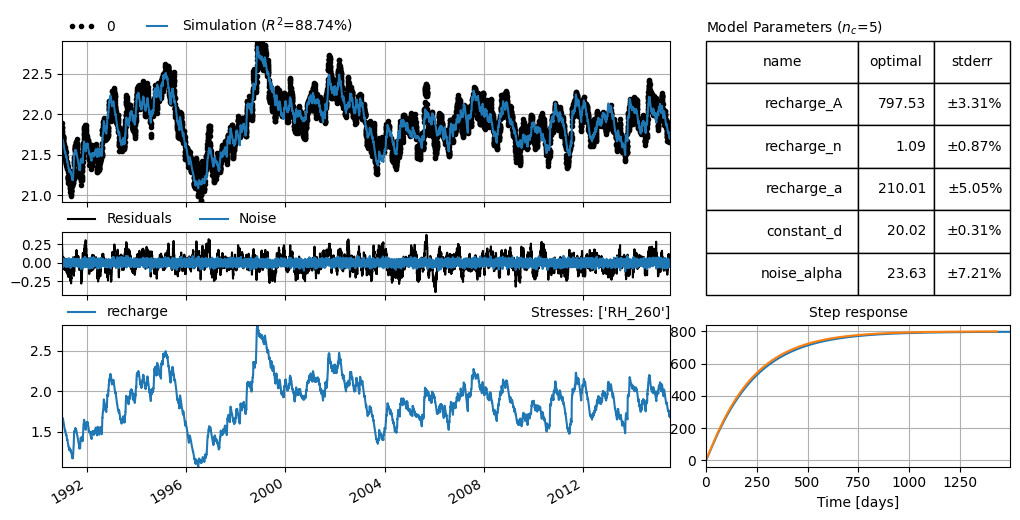

axes = ml.plots.results(figsize=(10, 5))
axes[-2].plot(ps.Gamma().step([Atrue, ntrue, atrue]))
print(np.exp(-1.0 / ml.parameters.loc["noise_alpha", "optimal"]).round(2), "vs", alpha)
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/v1.4.0/lib/python3.11/site-packages/pastas/timeseries_utils.py:90: FutureWarning: Day.delta is deprecated and will be removed in a future version. Use pd.Timedelta(obj) instead
if hasattr(offset, "delta"):
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/v1.4.0/lib/python3.11/site-packages/pastas/timeseries_utils.py:90: FutureWarning: Day.delta is deprecated and will be removed in a future version. Use pd.Timedelta(obj) instead
if hasattr(offset, "delta"):
0.96 vs 0.95

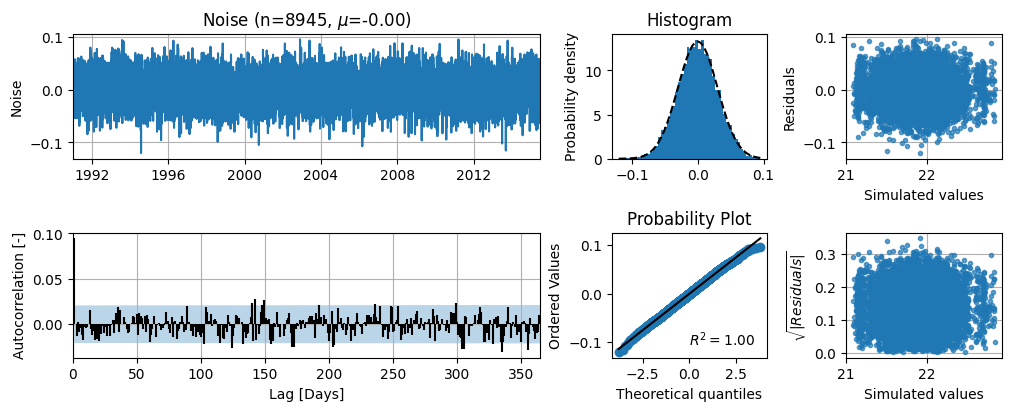

ml.plots.diagnostics(figsize=(10, 4));
Significant autocorrelation is still present at lag 1 and the parameter of the AR(1) is overestimated, trying to correct for the lack of an MA(1) part. This is to be expected, as the MA(1) process generates a strong autocorrelation at this first time lag. The negative autocorrelation in the first few time steps is a result of the overestimation of the AR(1) parameter.
A possible effect of failing to remove the autocorrelation at lag 1 may be that the parameter standard errors are under- or overestimated. Although that does not seem the case for this synthetic, real life examples may suffer from this.
8. Test the ArmaModel for irregular time steps#
In this final step the ArmaModel is tested for irregular timesteps, using the indices from a real groundwater level time series. It is clear from the example below that the ArmaModel does not yet work for irregular time steps, as (unlike the AR(1) model in Pastas) no weights are applied yet.
index = (
pd.read_csv("../examples/data/test_index.csv", parse_dates=True, index_col=0)
.index.round("D")
.drop_duplicates()
)
head_irregular = head_noise.reindex(index)
ml = ps.Model(head_irregular)
sm = ps.StressModel(rain, ps.Gamma(), name="recharge", settings="prec")
ml.add_stressmodel(sm)
ml.add_noisemodel(ps.ArmaModel())
ml.solve(tmin="1991", tmax="2015-06-29", noise=True, report=False)

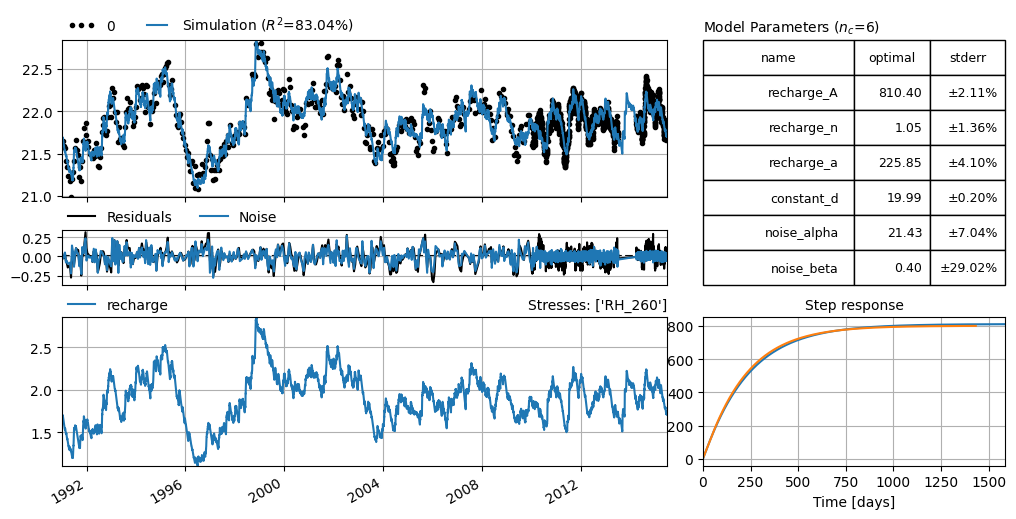

axes = ml.plots.results(figsize=(10, 5))
axes[-2].plot(ps.Gamma().step([Atrue, ntrue, atrue]))
print(np.exp(-1.0 / ml.parameters.loc["noise_alpha", "optimal"]).round(2), "vs", alpha)
print(np.exp(-1.0 / ml.parameters.loc["noise_beta", "optimal"]).round(2), "vs.", beta)
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/v1.4.0/lib/python3.11/site-packages/pastas/timeseries_utils.py:90: FutureWarning: Day.delta is deprecated and will be removed in a future version. Use pd.Timedelta(obj) instead
if hasattr(offset, "delta"):
0.95 vs 0.95
0.08 vs. 0.1

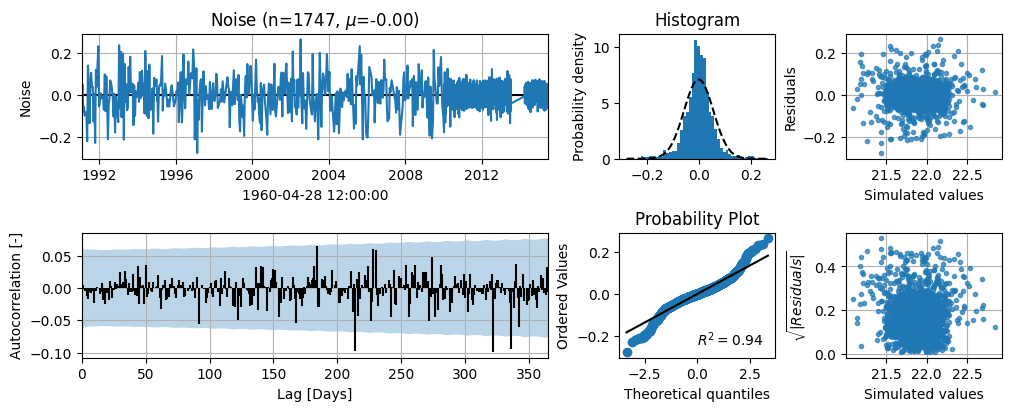

ml.plots.diagnostics(figsize=(10, 4));
