Frequentist uncertainty vs. Bayesian uncertainty analysis#

Mark Bakker, TU Delft & Raoul Collenteur, Eawag, February, 2025

In this notebook, the fit and uncertainty are compared for pastas models solved with least squares (frequentist uncertainty) and with MCMC (Bayesian uncertainty). Besides Pastas the following Python Packages have to be installed to run this notebook:

emcee
corner

Note: The EmceeSolver is still an experimental feature and some of the arguments may change in before official release. We welcome testing and feedback on this new feature!

import corner
import emcee
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

import pastas as ps

ps.set_log_level("ERROR")
ps.show_versions()

Pastas version: 1.10.1
Python version: 3.11.12
NumPy version: 2.2.6
Pandas version: 2.3.1
SciPy version: 1.16.1
Matplotlib version: 3.10.5
Numba version: 0.61.2

DeprecationWarning: As of Pastas 1.5, no noisemodel is added to the pastas Model class by default anymore. To solve your model using a noisemodel, you have to explicitly add a noisemodel to your model before solving. For more information, and how to adapt your code, please see this issue on GitHub: https://github.com/pastas/pastas/issues/735

1. A ‘regular’ Pastas Model#

The first step is to create a Pastas Model with a linear RechargeModel and a Gamma response function to simulate the effect of precipitation and evaporation on the heads. The AR1 noise model is used. We first estimate the model parameters using the standard least-squares approach.

head = pd.read_csv(
    "data/B32C0639001.csv", parse_dates=["date"], index_col="date"
).squeeze()
head = head["1990":]  # use data from 1990 on for this example

evap = pd.read_csv("data/evap_260.csv", index_col=0, parse_dates=[0]).squeeze()
rain = pd.read_csv("data/rain_260.csv", index_col=0, parse_dates=[0]).squeeze()

ml1 = ps.Model(head)
ml1.add_noisemodel(ps.ArNoiseModel())

rm = ps.RechargeModel(
    rain, evap, recharge=ps.rch.Linear(), rfunc=ps.Gamma(), name="rch"
)
ml1.add_stressmodel(rm)

ml1.solve()

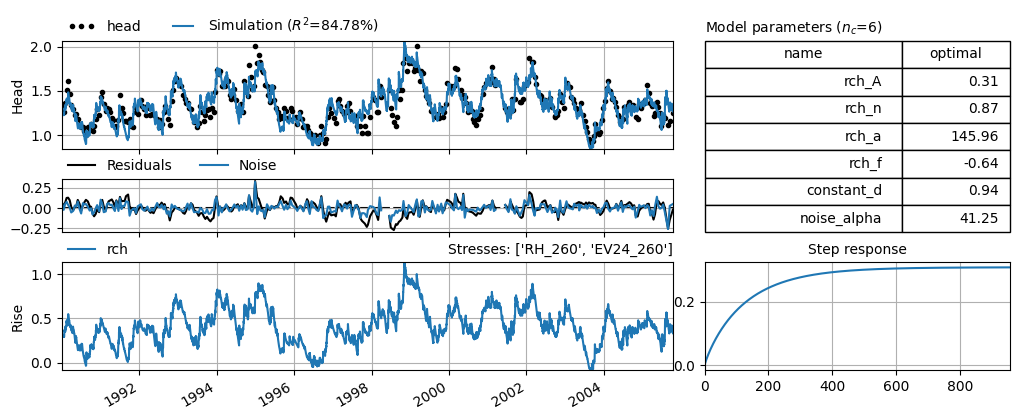

ax = ml1.plots.results(figsize=(10, 4))

Fit report head                   Fit Statistics
================================================
nfev    26                     EVP         84.78
nobs    351                    R2           0.85
noise   True                   RMSE         0.08
tmin    1990-01-02 00:00:00    AICc     -1976.58
tmax    2005-10-14 00:00:00    BIC      -1953.65
freq    D                      Obj          0.61
warmup  3650 days 00:00:00     ___
solver  LeastSquares           Interp.        No

Parameters (6 optimized)
================================================
                optimal    initial  vary
rch_A          0.307033   0.198424  True
rch_n          0.872703   1.000000  True
rch_a        145.956280  10.000000  True
rch_f         -0.639275  -1.000000  True
constant_d     0.935600   1.338063  True
noise_alpha   41.253326  15.000000  True

../_images/953ca31f5fb4aad17a2bbb1eec0efaf28036c40940795f0e9a63c9828a7534df.png

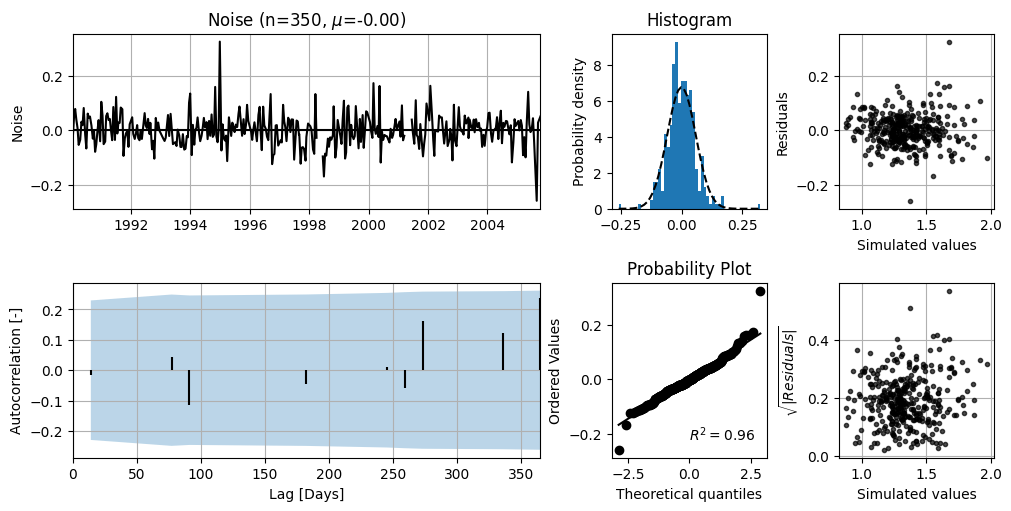

The diagnostics show that the noise meets the statistical requirements for uncertainty analysis reasonably well.

ml1.plots.diagnostics();

../_images/1ed99183ed0d94c46b57252cdba9d8574bbaaed9ff5c701ec0eef1f158f038fb.png

The estimated least squares parameters and standard errors are stored for later reference

ls_params = ml1.parameters[["optimal", "stderr"]].copy()
ls_params.rename(columns={"optimal": "ls_opt", "stderr": "ls_sig"}, inplace=True)
ls_params

	ls_opt	ls_sig
rch_A	0.307033	0.021351
rch_n	0.872703	0.026214
rch_a	145.956280	18.398532
rch_f	-0.639275	0.069410
constant_d	0.935600	0.048532
noise_alpha	41.253326	6.333738

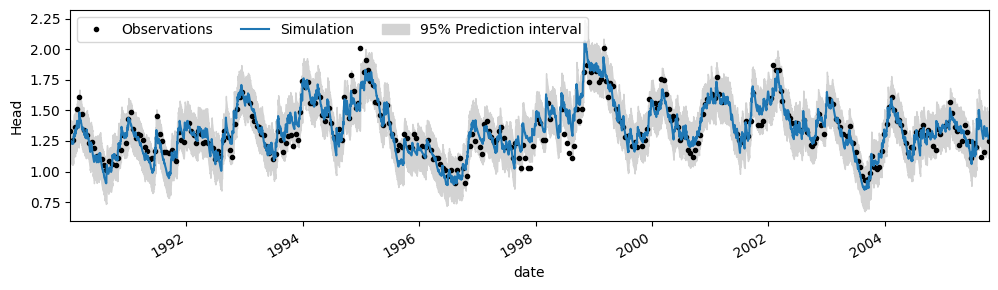

# Compute prediction interval Pastas
pi = ml1.solver.prediction_interval(n=1000)
ax = ml1.plot(figsize=(10, 3))
ax.fill_between(pi.index, pi.iloc[:, 0], pi.iloc[:, 1], color="lightgray")
ax.legend(["Observations", "Simulation", "95% Prediction interval"], ncol=3, loc=2)
pi_pasta = np.mean(pi[0.975] - pi[0.025])
print(f"Mean prediction interval width: {pi_pasta:.3f} m")
print(f"Prediction interval coverage probability: {ps.stats.picp(head, pi): .3f}")

Mean prediction interval width: 0.324 m
Prediction interval coverage probability:  0.946

../_images/86116a1f6553c56a07396c3384b4d27d97c9a6ab5b1225852d2538342bcf1787.png

2. Use the EmceeSolver#

We will now use MCMC to estimate the model parameters and their uncertainties. The EmceeSolve solver wraps the Emcee package, which implements different versions of MCMC. A good understanding of Emcee helps when using this solver, so it comes recommended to check out their documentation as well.

We start by making a pastas model with a linear recharge model and a Gamma response function. No noise model is added, as this is taken care of in the likelihood function. The model is solved using the regular solve (least squares) to have a good estimate of the starting values of the parameters.

ml2 = ps.Model(head)
rm = ps.RechargeModel(
    rain, evap, recharge=ps.rch.Linear(), rfunc=ps.Gamma(), name="rch"
)
ml2.add_stressmodel(rm)
ml2.solve()

Fit report head                   Fit Statistics
================================================
nfev    18                     EVP         86.58
nobs    351                    R2           0.87
noise   False                  RMSE         0.08
tmin    1990-01-02 00:00:00    AICc     -1797.03
tmax    2005-10-14 00:00:00    BIC      -1777.90
freq    D                      Obj          1.02
warmup  3650 days 00:00:00     ___
solver  LeastSquares           Interp.        No

Parameters (5 optimized)
================================================
               optimal    initial  vary
rch_A         0.314027   0.198424  True
rch_n         0.800944   1.000000  True
rch_a       235.020236  10.000000  True
rch_f        -0.898130  -1.000000  True
constant_d    1.051884   1.338063  True

To set up the EmceeSolve solver, a number of decisions need to be made:

Select the priors of the parameters
Select a (log) likelihood function
Select the number of steps and thinning

2a. Priors#

The first step is to select the priors of the parameters. This is done by using the ml.set_parameter method and the dist argument (from distribution). Any distribution from scipy.stats can be chosen url, for example uniform, norm, or lognorm. Here, we select normal distributions for the priors. Currently, pastas will use the initial value of the parameter for the loc argument of the distribution (e.g., the mean of a normal distribution), and the stderr as the scale argument (e.g., the standard deviation of a normal distribution). Only for the parameters with a uniform distribution, the pmin and pmax values are used to determine a uniform prior. By default, all parameters are assigned a uniform prior.

Note: This means that either the `pmin` and `pmax` should be set for uniform distributions, or the `stderr` for any other distribution. That is why in this example model was first solved using LeastSquares, in order to obtain estimates for the `stderr`. In practice, these could also be set based on expert judgement or information about the parameters.

# Set the initial parameters to a normal distribution
ml2.parameters["initial"] = ml2.parameters[
    "optimal"
]  # set initial value to the optimal from least squares for good starting point
ml2.parameters["stderr"] = (
    2 * ml2.parameters["stderr"]
)  # this column is used (for now) to set the scale of the normal distribution

for name in ml2.parameters.index:
    ml2.set_parameter(
        name,
        dist="norm",
    )

ml2.parameters

	initial	pmin	pmax	vary	name	dist	stderr	optimal
rch_A	0.314027	0.00001	19.842364	True	rch	norm	0.022943	0.314027
rch_n	0.800944	0.10000	100.000000	True	rch	norm	0.049724	0.800944
rch_a	235.020236	0.01000	10000.000000	True	rch	norm	46.258118	235.020236
rch_f	-0.898130	-2.00000	0.000000	True	rch	norm	0.107651	-0.898130
constant_d	1.051884	NaN	NaN	True	constant	norm	0.057945	1.051884

2b. Create the solver instance#

The next step is to create an instance of the EmceeSolve solver class. At this stage all the settings need to be provided on how the Ensemble Sampler is created (https://emcee.readthedocs.io/en/stable/user/sampler/). Important settings are the nwalkers, the moves, the objective_function. More advanced options are to parallelize the MCMC algorithm (parallel=True), and to set a backend to store the results. Here’s an example:

# Choose the objective function
ln_prob = ps.objfunc.GaussianLikelihoodAr1()

# Create the EmceeSolver with some settings
s = ps.EmceeSolve(
    nwalkers=20,
    moves=emcee.moves.DEMove(),
    objective_function=ln_prob,
    progress_bar=True,
    parallel=False,
)

In the above code we created an EmceeSolve instance with 20 walkers, which take steps according to the DEMove move algorithm (see Emcee docs), and a Gaussian likelihood function that assumes AR1 correlated errors. Different objective functions are available, see the Pastas documentation on the different options.

Depending on the likelihood function, a number of additional parameters need to be inferred. These parameters are not added to the Pastas Model instance, but are available from the solver object. Using the set_parameter method of the solver, these parameters can be changed. In this example where we use the GaussianLikelihoodAr1 function, the \(\sigma^2\) and \(\phi\) are estimated; the unknown standard deviation of the errors and the autoregressive parameter.

s.parameters

	initial	pmin	pmax	vary	stderr	name	dist
ln_var	0.05	1.000000e-10	1.00000	True	0.01	ln	uniform
ln_phi	0.50	1.000000e-10	0.99999	True	0.20	ln	uniform

sigsq = ml1.noise().std() ** 2
s.set_parameter("ln_var", initial=sigsq, vary=True)
s.parameters.loc["ln_var", "stderr"] = stderr = sigsq / 8
s.parameters

	initial	pmin	pmax	vary	stderr	name	dist
ln_var	0.00347	1.000000e-10	1.00000	True	0.000434	ln	uniform
ln_phi	0.50000	1.000000e-10	0.99999	True	0.200000	ln	uniform

2c. Run the solver and solve the model#

After setting the parameters and creating a EmceeSolve solver instance we are now ready to run the MCMC analysis. We can do this by running ml.solve. We can pass the same parameters that we normally provide to this method (e.g., tmin or fit_constant). Here we use the initial parameters from our least-square solve, and do not fit a noise model, because we take autocorrelated errors into account through the likelihood function.

All the arguments that are not used by ml.solve, for example steps and tune, are passed on to the run_mcmc method from the sampler (see Emcee docs). The most important is the steps argument, that determines how many steps each of the walkers takes.

# Use the solver to run MCMC
ml2.solve(
    solver=s,
    initial=False,
    tmin="1990",
    steps=1000,
    tune=True,
    report=False,
)

emcee: Exception while calling your likelihood function:
  params: [ 3.21449292e-01  8.38885138e-01  2.08422770e+02 -7.87204048e-01
  9.85275191e-01  3.07834419e-03  5.84479958e-01]
  args: (False, None, None)
  kwargs: {}
  exception:
