Estimating recharge#
R.A. Collenteur, University of Graz
In this example notebook it is shown how to obtain groundwater recharge estimates using linear and non-linear TFN models available in Pastas. To illustrate the methods we look at example models for a groundwater level time series observed near the town of Wagna in Southeastern Austria. This analysis is based on the study from Collenteur et al. (2021).
import matplotlib.pyplot as plt
import pandas as pd
import pastas as ps
ps.set_log_level("ERROR")
ps.show_versions()
Pastas : 2.0.0
Python : 3.14.0
Numpy : 2.4.6
Pandas : 3.0.3
Scipy : 1.17.1
Matplotlib : 3.10.9
Numba : 0.65.1

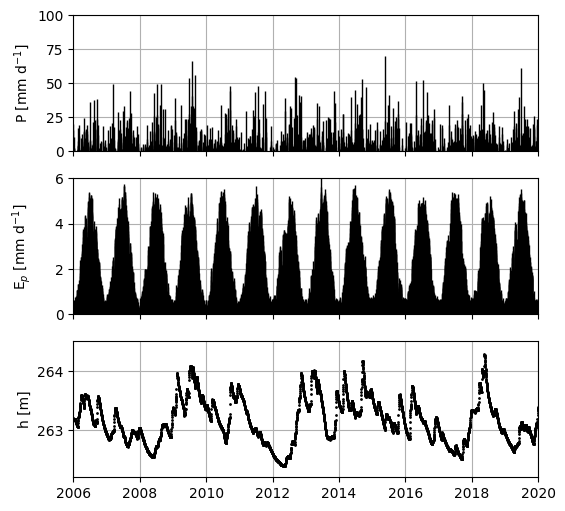

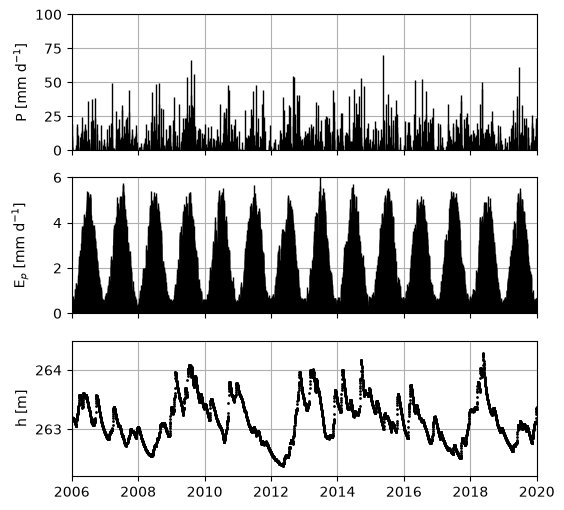

1. Load and visualize the input data#
Below we load and visualize the data used in this example. This is the input data necessary to for the estimation of groundwater recharge: precipitation, potential evaporation, and groundwater levels. The precipitation and evaporation should be available at daily time intervals and provided in mm/day.
head = (
pd.read_csv("data_wagna/head_wagna.csv", index_col=0, parse_dates=True, skiprows=2)
.squeeze()
.loc["2006":]
)
evap = pd.read_csv(
"data_wagna/evap_wagna.csv", index_col=0, parse_dates=True, skiprows=2
).squeeze()
rain = pd.read_csv(
"data_wagna/rain_wagna.csv", index_col=0, parse_dates=True, skiprows=2
).squeeze()
### Create a plot of all the input data
fig, [ax1, ax2, ax3] = plt.subplots(3, 1, sharex=True, figsize=(6, 6))
ax1.vlines(rain.index, [0], rain.values, color="k", lw=1)
ax1.set_ylabel("P [mm d$^{-1}$]")
ax1.set_ylim(0, 100)
ax2.vlines(evap.index, [0], evap.values, color="k", lw=1)
ax2.set_ylabel("E$_p$ [mm d$^{-1}$]\n")
ax2.set_ylim(0, 6)
ax3.plot(head, marker=".", markersize=2, color="k", linestyle=" ")
ax3.set_ylabel("h [m]")
ax3.set_ylim(262.2, 264.5)
for ax in [ax1, ax2, ax3]:
ax.grid()
plt.xlim(pd.Timestamp("2006-01-01"), pd.Timestamp("2020-01-01"));
2. Creating and calibrating Pastas models#
The next step is the create the TFN models in Pastas and calibrate them. Here we create two types of TFN models: one with a linear approximation for the recharge and one with a non-linear recharge model. Based on the time step analysis we calibrate the models on groundwater level time series with a 10-day time interval between observations.
It is important to use the correct settings for the model calibration In particular it is important to use a warmup period for the non-linear model, where both precipitation and evaporation is available. Here we use a 10-year period for calibration and a three year period for validation.
# Model settings
tmin = pd.Timestamp("2007-01-01") # Needs warmup
tmax = pd.Timestamp("2016-12-31")
tmax_val = pd.Timestamp("2020-01-01")
noise = True
dt = 10
freq = "10D"
h = head
h = h.loc[~h.index.duplicated(keep="first")]
mls = {
"Linear": [ps.FourParam(), ps.rch.Linear()],
"Non-linear": [ps.Exponential(), ps.rch.FlexModel()],
}
for name, [rfunc, rch] in mls.items():
# Create a Pastas model and add the recharge model
ml = ps.Model(h, name=name)
sm = ps.RechargeModel(rain, evap, recharge=rch, rfunc=rfunc, name="rch")
ml.add_stressmodel(sm)
# In case of the non-linear model, change some parameter settings
if name == "Non-linear":
ml.set_parameter("rch_srmax", vary=False)
ml.set_parameter("constant_d", vary=True, initial=262, pmax=head.min())
# Add the ARMA(1,1) noise model and solve the Pastas model
ml.add_noisemodel(ps.ArmaNoiseModel())
solver = ps.LmfitSolve()
ml.solve(
tmin=tmin,
tmax=tmax,
solver=solver,
method="least_squares",
report="basic",
freq_obs=freq,
)
mls[name] = ml
Fit report Linear Fit Statistics
==================================================
nfev 190 EVP 74.26
nobs 366 R2 0.74
noise True RMSE 0.19
tmin 2007-01-01 00:00:00 AICc -1921.02
tmax 2016-12-31 00:00:00 BIC -1890.20
freq D Obj 1.84
freq_obs 10D ___
warmup 3650 days 00:00:00 Interp. No
Parameters (8 optimized)
==================================================
optimal initial vary
rch_A 0.600736 0.146585 True
rch_n 0.957730 1.000000 True
rch_a 128.768495 10.000000 True
rch_b 0.044995 10.000000 True
rch_f -0.784833 -1.000000 True
constant_d 262.518141 263.166076 True
noise_alpha 78.873669 1.000000 True
noise_beta 9.154576 1.000000 True
Fit report Non-linear Fit Statistics
==================================================
nfev 151 EVP 80.15
nobs 366 R2 0.80
noise True RMSE 0.17
tmin 2007-01-01 00:00:00 AICc -2030.59
tmax 2016-12-31 00:00:00 BIC -1999.77
freq D Obj 1.36
freq_obs 10D ___
warmup 3650 days 00:00:00 Interp. No
Parameters (8 optimized)
==================================================
optimal initial vary
rch_A 0.855067 0.529381 True
rch_a 99.472462 10.000000 True
rch_srmax 250.000000 250.000000 False
rch_lp 0.250000 0.250000 False
rch_ks 73.613450 100.000000 True
rch_gamma 2.752092 2.000000 True
rch_kv 1.373519 1.000000 True
rch_simax 2.000000 2.000000 False
constant_d 262.382442 262.000000 True
noise_alpha 96.963940 1.000000 True
noise_beta 7.058991 1.000000 True
Warnings! (1)
==================================================
Parameter 'constant_d' on upper bound: 2.62e+02

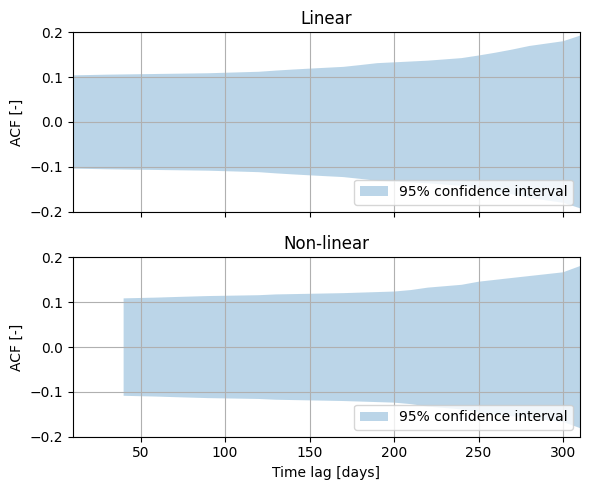

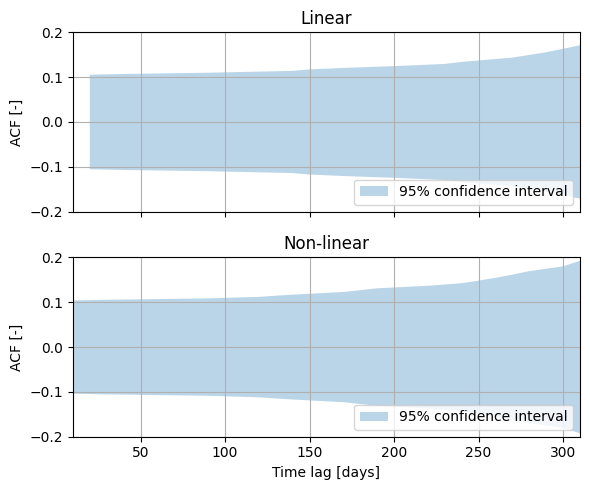

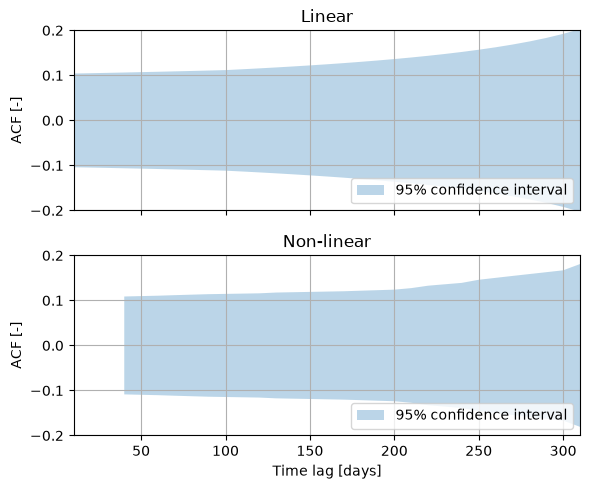

3. Check for autocorrelation#
After the models are calibrated, the noise time series may be checked for autocorrelation. This is especially important here because in the next step we use the estimated standard errors of the parameters to compute the 95% confidence intervals of the recharge estimates. The plots below show that there is no significant autocorrelation (with \(\alpha\)=0.05).
fig, axes = plt.subplots(2, 1, figsize=(6, 5), sharex=True, sharey=True)
for i, ml in enumerate(mls.values()):
noise = (
ml.noise().asfreq(freq).fillna(0.0)
) # Fill up two nan-values so it is regular
ps.plots.acf(noise, acf_options=dict(bin_method="regular"), alpha=0.05, ax=axes[i])
axes[i].set_title(ml.name)
axes[i].set_ylim(-0.2, 0.2)
axes[i].set_ylabel("ACF [-]")
axes[i].set_xlabel("")
plt.xlim(10)
plt.xlabel("Time lag [days]")
plt.tight_layout()
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/dev/lib/python3.14/site-packages/numpy/lib/_function_base_impl.py:3023: RuntimeWarning: invalid value encountered in divide
c /= stddev[:, None]
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/dev/lib/python3.14/site-packages/numpy/lib/_function_base_impl.py:3024: RuntimeWarning: invalid value encountered in divide
c /= stddev[None, :]
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/dev/lib/python3.14/site-packages/numpy/lib/_function_base_impl.py:3023: RuntimeWarning: invalid value encountered in divide
c /= stddev[:, None]
/home/docs/checkouts/readthedocs.org/user_builds/pastas/envs/dev/lib/python3.14/site-packages/numpy/lib/_function_base_impl.py:3024: RuntimeWarning: invalid value encountered in divide
c /= stddev[None, :]
4. Compute confidence intervals#
In the following code-block the 95% confidence intervals of the recharge estimates are computed using an monte carlo analysis. This may take a bit of time, depending on the number of monte carlo runs are performed (first line).
n = int(1e2) # number of monte carlo runs, set very low here for ReadTheDocs
alpha = 0.05 # 95% confidence interval
q = [alpha / 2, 1 - alpha / 2]
# Store the Upper and Lower boundaries of the 95% interval
yerru = []
yerrl = []
yerru_A = []
yerrl_A = []
# Recharge data
data_r = pd.DataFrame(
{
"Linear": mls["Linear"].get_stress("rch"),
"Non-linear": mls["Non-linear"].get_stress("rch"),
}
)
for ml in mls.values():
func = ml.stressmodels["rch"].get_stress
params = ml.solver.get_parameter_sample(n=n, name="rch")
data = {}
# Here we run the model n times with different parameter samples
for i, param in enumerate(params):
data[i] = func(p=param)
df = pd.DataFrame.from_dict(data, orient="columns").loc[tmin:tmax_val]
# store recharge estimates at 10-day intervals
df = df.resample(freq).sum()
yerrl.append(df.quantile(q=q, axis=1).transpose().iloc[:, 0])
yerru.append(df.quantile(q=q, axis=1).transpose().iloc[:, 1])
# store recharge estimates at one year sums
df = df.resample("YE").sum()
rch = data_r[ml.name].resample("YE").sum()
yerrl_A.append(
df.quantile(q=q, axis=1).transpose().subtract(rch, axis=0).iloc[:, 0].dropna()
)
yerru_A.append(
df.quantile(q=q, axis=1).transpose().subtract(rch, axis=0).iloc[:, 1].dropna()
)

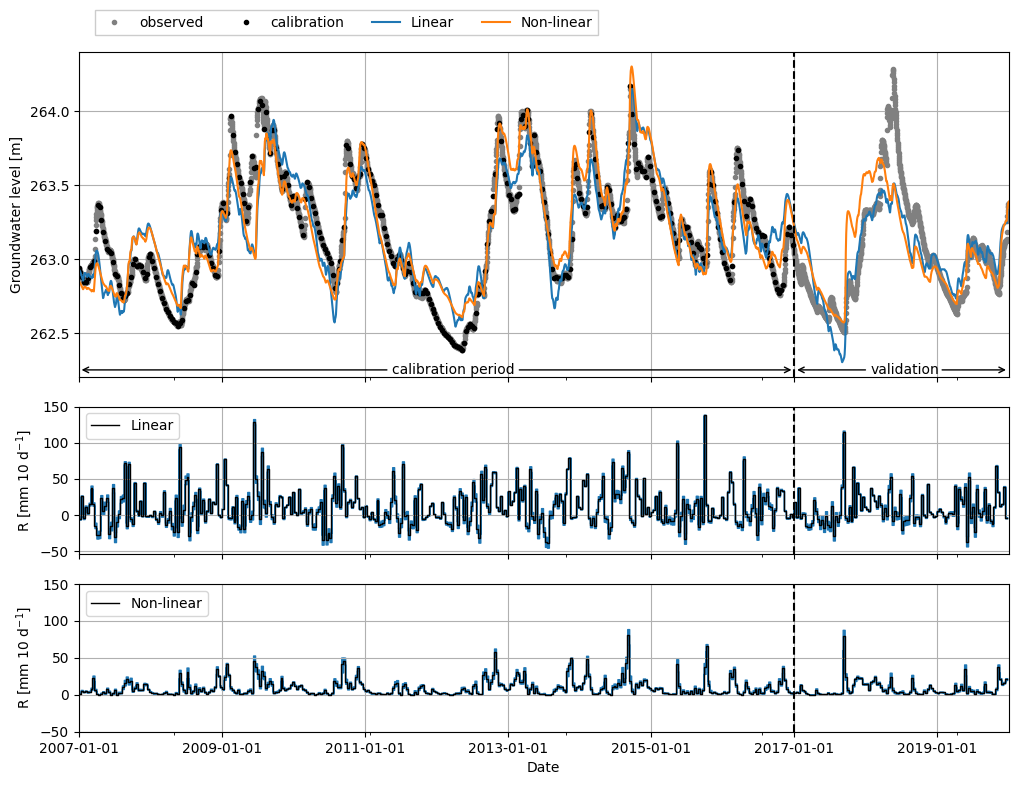

5. Visualize the results#
We can now plot the simulated groundwater levels and the estimated groundwater recharge for both models. For the recharge estimates, here the sums over 10-day intervals, we also plot the 95% confidence intervals.
plt.figure(figsize=(12, 10))
ax = plt.subplot2grid((4, 1), (0, 0), rowspan=2)
head.plot(ax=ax, linestyle=" ", c="gray", marker=".", x_compat=True, label="observed")
ml.oseries.series.plot(ax=ax, marker=".", c="k", linestyle=" ", label="calibration")
# Create the arrows indicating the calibration and validation period
kwargs = dict(
textcoords="offset points",
arrowprops=dict(arrowstyle="->"),
va="center",
ha="center",
xycoords="data",
)
ax.annotate("calibration period", xy=("2007-01-01", 262.25), xytext=(270, 0), **kwargs)
ax.annotate("", xy=("2017-01-01", 262.25), xytext=(-200, 0), **kwargs)
ax.annotate("validation", xy=("2017-01-01", 262.25), xytext=(80, 0), **kwargs)
ax.annotate("", xy=("2020-01-01", 262.25), xytext=(-50, 0), **kwargs)
# Plot the recharge fluxes
for i, ml in enumerate(mls.values()):
axn = plt.subplot2grid((4, 1), (i + 2, 0), sharex=ax)
axn.grid(True, zorder=-10)
axn.set_axisbelow(True)
ml.simulate(tmax=tmax_val).plot(ax=ax, label=ml.name, x_compat=True)
rch = ml.get_stress("rch", tmin=tmin, tmax=tmax_val).resample(freq).sum()
axn.fill_between(
yerrl[i].index,
yerrl[i].values,
yerru[i].values,
step="pre",
edgecolor="C0",
zorder=0,
facecolor="C0",
)
axn.plot(rch.index, rch.values, c="k", drawstyle="steps", label=ml.name, lw=1)
axn.set_yticks([-50, 0, 50, 100, 150])
axn.set_ylabel("R [mm 10 d$^{-1}$]")
axn.legend(loc=2, ncol=2)
axn.axvline(tmax, c="k", linestyle="--")
axn.set_xticks([])
ax.legend(ncol=5, loc=2, bbox_to_anchor=(0.01, 1.15), framealpha=1, fancybox=False)
ax.axvline(tmax, c="k", linestyle="--")
ax.set_ylabel("Groundwater level [m]")
ax.set_yticks([262.5, 263.0, 263.5, 264.0])
ax.grid()
axn.set_xlim([tmin, tmax_val])
axn.set_xlabel("Date")
axn.set_xticks([pd.to_datetime(str(year)) for year in range(2007, 2021, 2)]);

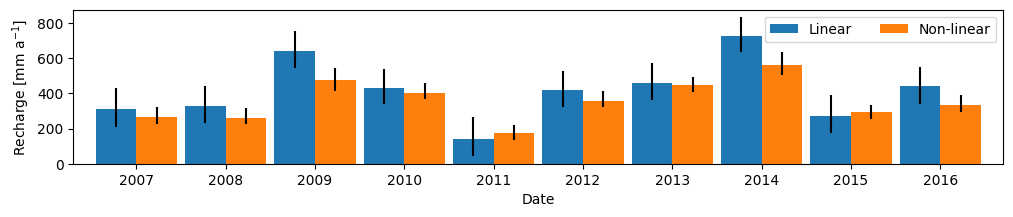

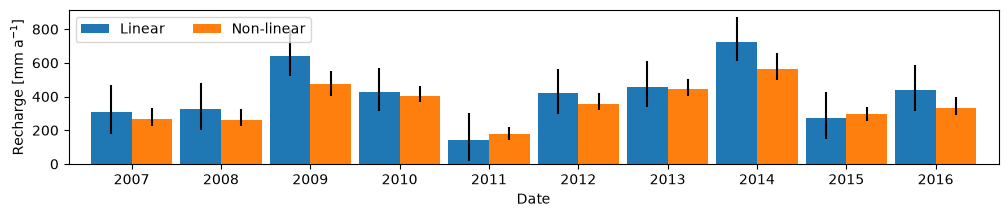

6. Plot the annual recharge rates#
We may also be interested in the estimated annual recharge rates. These can easily be computed busing the resample method from Pandas. We also show the 95% confidence interval for the estimated annual recharge rates.
rch = data_r.loc[tmin:"2019"].resample("YE").sum()
yerr = [[-lower, upper] for lower, upper in zip(yerrl_A, yerru_A)]
ax = rch.plot.bar(figsize=(12, 2), width=0.91, yerr=yerr)
ax.set_xticklabels(labels=rch.index.year, rotation=0, ha="center")
ax.set_ylabel("Recharge [mm a$^{-1}$]")
ax.legend(ncol=3);

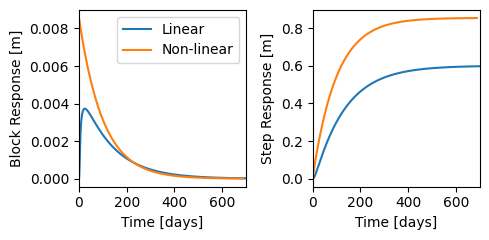

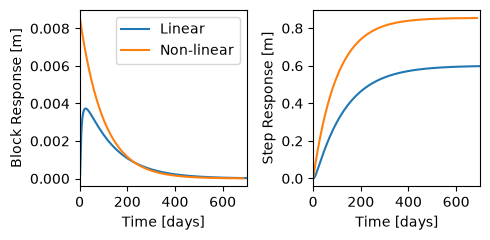

7. Plot the step and block response functions#
We can also plot the calibrated impulse response functions.
fig, [ax, ax1] = plt.subplots(1, 2, figsize=(5, 2.5), sharex=True)
for ml in mls.values():
ml.get_block_response("rch").plot(ax=ax)
ml.get_step_response("rch").plot(ax=ax1)
ax.set_ylabel("Block Response [m]")
ax.legend(mls.keys())
ax1.set_ylabel("Step Response [m]")
ax1.set_xlim(0, 700)
plt.tight_layout()
---------------------------------------------------------------------------
