Frequentist uncertainty vs. Bayesian uncertainty analysis#
Mark Bakker, TU Delft & Raoul Collenteur, Eawag, February, 2025
In this notebook, the fit and uncertainty are compared for pastas models solved with least squares (frequentist uncertainty) and with MCMC (Bayesian uncertainty).
Besides Pastas the following Python Packages have to be installed to run this notebook:
Note:
The EmceeSolver is still an experimental feature and some of the arguments may change in before official release. We welcome testing and feedback on this new feature!
import corner
import emcee
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pastas as ps
ps.set_log_level("ERROR")
ps.show_versions()
Pastas version: 1.11.0
Python version: 3.11.12
NumPy version: 2.2.6
Pandas version: 2.3.2
SciPy version: 1.16.1
Matplotlib version: 3.10.6
Numba version: 0.61.2
1. A ‘regular’ Pastas Model#
The first step is to create a Pastas Model with a linear RechargeModel and a Gamma response function to simulate the effect of precipitation and evaporation on the heads. The AR1 noise model is used. We first estimate the model parameters using the standard least-squares approach.
head = pd.read_csv(
"data/B32C0639001.csv", parse_dates=["date"], index_col="date"
).squeeze()
head = head["1990":] # use data from 1990 on for this example
evap = pd.read_csv("data/evap_260.csv", index_col=0, parse_dates=[0]).squeeze()
rain = pd.read_csv("data/rain_260.csv", index_col=0, parse_dates=[0]).squeeze()
ml1 = ps.Model(head)
ml1.add_noisemodel(ps.ArNoiseModel())
rm = ps.RechargeModel(
rain, evap, recharge=ps.rch.Linear(), rfunc=ps.Gamma(), name="rch"
)
ml1.add_stressmodel(rm)
ml1.solve()

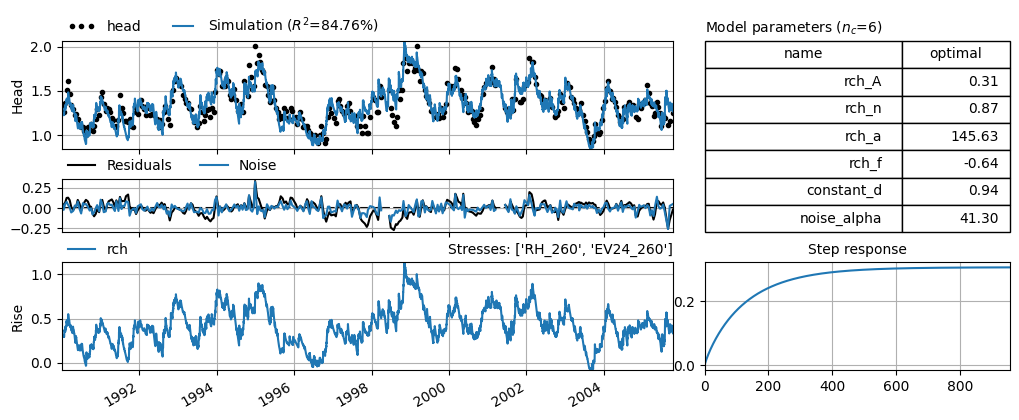

ax = ml1.plots.results(figsize=(10, 4))
Fit report head Fit Statistics
================================================
nfev 29 EVP 84.76
nobs 351 R2 0.85
noise True RMSE 0.08
tmin 1990-01-02 00:00:00 AICc -1976.57
tmax 2005-10-14 00:00:00 BIC -1953.65
freq D Obj 0.61
warmup 3650 days 00:00:00 ___
solver LeastSquares Interp. No
Parameters (6 optimized)
================================================
optimal initial vary
rch_A 0.306929 0.198424 True
rch_n 0.873052 1.000000 True
rch_a 145.630837 10.000000 True
rch_f -0.637846 -1.000000 True
constant_d 0.935049 1.338063 True
noise_alpha 41.304942 15.000000 True

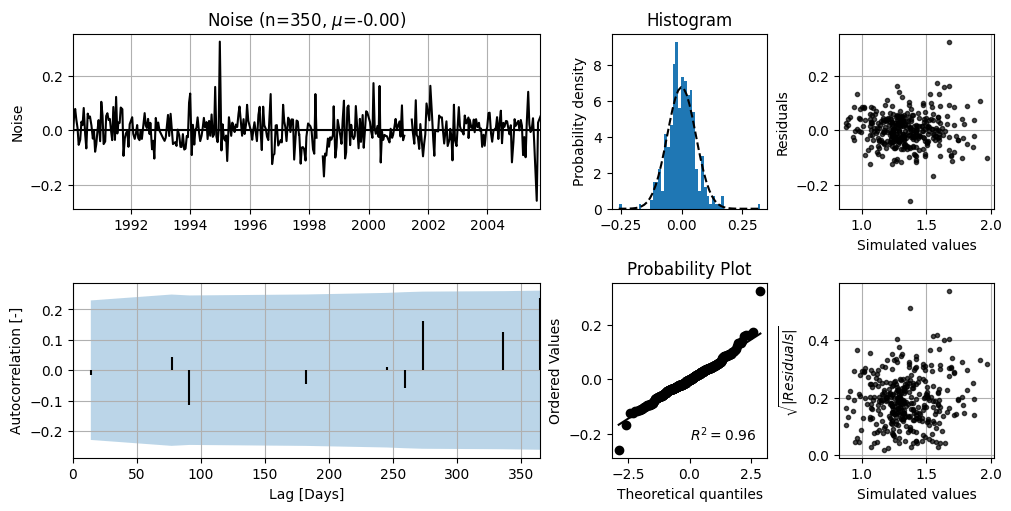

The diagnostics show that the noise meets the statistical requirements for uncertainty analysis reasonably well.
ml1.plots.diagnostics();
The estimated least squares parameters and standard errors are stored for later reference
ls_params = ml1.parameters[["optimal", "stderr"]].copy()
ls_params.rename(columns={"optimal": "ls_opt", "stderr": "ls_sig"}, inplace=True)
ls_params
| ls_opt | ls_sig | |
|---|---|---|
| rch_A | 0.306929 | 0.021354 |
| rch_n | 0.873052 | 0.026222 |
| rch_a | 145.630837 | 18.352590 |
| rch_f | -0.637846 | 0.069334 |
| constant_d | 0.935049 | 0.048544 |
| noise_alpha | 41.304942 | 6.342921 |

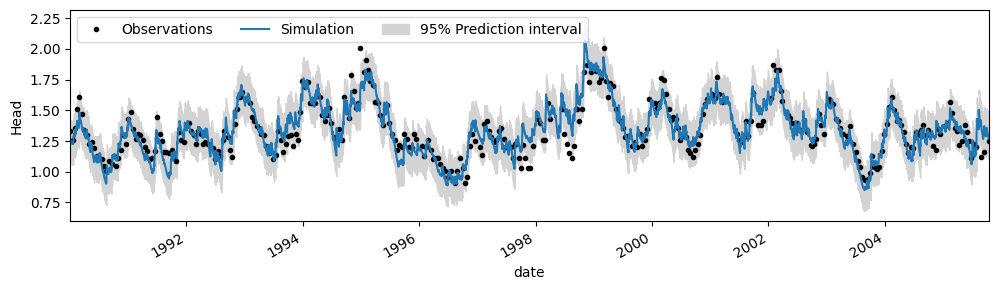

# Compute prediction interval Pastas
pi = ml1.solver.prediction_interval(n=1000)
ax = ml1.plot(figsize=(10, 3))
ax.fill_between(pi.index, pi.iloc[:, 0], pi.iloc[:, 1], color="lightgray")
ax.legend(["Observations", "Simulation", "95% Prediction interval"], ncol=3, loc=2)
pi_pasta = np.mean(pi[0.975] - pi[0.025])
print(f"Mean prediction interval width: {pi_pasta:.3f} m")
print(f"Prediction interval coverage probability: {ps.stats.picp(head, pi): .3f}")
Mean prediction interval width: 0.325 m
Prediction interval coverage probability: 0.940
2. Use the EmceeSolver#
We will now use MCMC to estimate the model parameters and their uncertainties. The EmceeSolve solver wraps the Emcee package, which implements different versions of MCMC. A good understanding of Emcee helps when using this solver, so it comes recommended to check out their documentation as well.
We start by making a pastas model with a linear recharge model and a Gamma response function. No noise model is added, as this is taken care of in the likelihood function. The model is solved using the regular solve (least squares) to have a good estimate of the starting values of the parameters.
ml2 = ps.Model(head)
rm = ps.RechargeModel(
rain, evap, recharge=ps.rch.Linear(), rfunc=ps.Gamma(), name="rch"
)
ml2.add_stressmodel(rm)
ml2.solve()
Fit report head Fit Statistics
================================================
nfev 16 EVP 86.58
nobs 351 R2 0.87
noise False RMSE 0.08
tmin 1990-01-02 00:00:00 AICc -1797.03
tmax 2005-10-14 00:00:00 BIC -1777.90
freq D Obj 1.02
warmup 3650 days 00:00:00 ___
solver LeastSquares Interp. No
Parameters (5 optimized)
================================================
optimal initial vary
rch_A 0.314024 0.198424 True
rch_n 0.800951 1.000000 True
rch_a 235.012025 10.000000 True
rch_f -0.898120 -1.000000 True
constant_d 1.051881 1.338063 True
To set up the EmceeSolve solver, a number of decisions need to be made:
Select the priors of the parameters
Select a (log) likelihood function
Select the number of steps and thinning
2a. Priors#
The first step is to select the priors of the parameters. This is done by using the ml.set_parameter method and the dist argument (from distribution). Any distribution from scipy.stats can be chosen url, for example uniform, norm, or lognorm. Here, we select normal distributions for the priors. Currently, pastas will use the initial value of the parameter for the loc argument of the distribution (e.g., the mean of a normal distribution), and the stderr as the scale argument (e.g., the standard deviation of a normal distribution). Only for the parameters with a uniform distribution, the pmin and pmax values are used to determine a uniform prior. By default, all parameters are assigned a uniform prior.
Note:
This means that either the `pmin` and `pmax` should be set for uniform distributions, or the `stderr` for any other distribution. That is why in this example model was first solved using LeastSquares, in order to obtain estimates for the `stderr`. In practice, these could also be set based on expert judgement or information about the parameters.
# Set the initial parameters to a normal distribution
ml2.parameters["initial"] = ml2.parameters[
"optimal"
] # set initial value to the optimal from least squares for good starting point
ml2.parameters["stderr"] = (
2 * ml2.parameters["stderr"]
) # this column is used (for now) to set the scale of the normal distribution
for name in ml2.parameters.index:
ml2.set_parameter(
name,
dist="norm",
)
ml2.parameters
| initial | pmin | pmax | vary | name | dist | stderr | optimal | |
|---|---|---|---|---|---|---|---|---|
| rch_A | 0.314024 | 0.00001 | 19.842364 | True | rch | norm | 0.022942 | 0.314024 |
| rch_n | 0.800951 | 0.10000 | 5.000000 | True | rch | norm | 0.049725 | 0.800951 |
| rch_a | 235.012025 | 0.01000 | 10000.000000 | True | rch | norm | 46.256299 | 235.012025 |
| rch_f | -0.898120 | -2.00000 | 0.000000 | True | rch | norm | 0.107650 | -0.898120 |
| constant_d | 1.051881 | NaN | NaN | True | constant | norm | 0.057945 | 1.051881 |
2b. Create the solver instance#
The next step is to create an instance of the EmceeSolve solver class. At this stage all the settings need to be provided on how the Ensemble Sampler is created (https://emcee.readthedocs.io/en/stable/user/sampler/). Important settings are the nwalkers, the moves, the objective_function. More advanced options are to parallelize the MCMC algorithm (parallel=True), and to set a backend to store the results. Here’s an example:
# Choose the objective function
ln_prob = ps.objfunc.GaussianLikelihoodAr1()
# Create the EmceeSolver with some settings
s = ps.EmceeSolve(
nwalkers=20,
moves=emcee.moves.DEMove(),
objective_function=ln_prob,
progress_bar=True,
parallel=False,
)
In the above code we created an EmceeSolve instance with 20 walkers, which take steps according to the DEMove move algorithm (see Emcee docs), and a Gaussian likelihood function that assumes AR1 correlated errors. Different objective functions are available, see the Pastas documentation on the different options.
Depending on the likelihood function, a number of additional parameters need to be inferred. These parameters are not added to the Pastas Model instance, but are available from the solver object. Using the set_parameter method of the solver, these parameters can be changed. In this example where we use the GaussianLikelihoodAr1 function, the \(\sigma^2\) and \(\phi\) are estimated; the unknown standard deviation of the errors and the autoregressive parameter.
s.parameters
| initial | pmin | pmax | vary | stderr | name | dist | |
|---|---|---|---|---|---|---|---|
| ln_var | 0.05 | 1.000000e-10 | 1.00000 | True | 0.01 | ln | uniform |
| ln_phi | 0.50 | 1.000000e-10 | 0.99999 | True | 0.20 | ln | uniform |
sigsq = ml1.noise().std() ** 2
s.set_parameter("ln_var", initial=sigsq, vary=True)
s.parameters.loc["ln_var", "stderr"] = stderr = sigsq / 8
s.parameters
| initial | pmin | pmax | vary | stderr | name | dist | |
|---|---|---|---|---|---|---|---|
| ln_var | 0.00347 | 1.000000e-10 | 1.00000 | True | 0.000434 | ln | uniform |
| ln_phi | 0.50000 | 1.000000e-10 | 0.99999 | True | 0.200000 | ln | uniform |
2c. Run the solver and solve the model#
After setting the parameters and creating a EmceeSolve solver instance we are now ready to run the MCMC analysis. We can do this by running ml.solve. We can pass the same parameters that we normally provide to this method (e.g., tmin or fit_constant). Here we use the initial parameters from our least-square solve, and do not fit a noise model, because we take autocorrelated errors into account through the likelihood function.
All the arguments that are not used by ml.solve, for example steps and tune, are passed on to the run_mcmc method from the sampler (see Emcee docs). The most important is the steps argument, that determines how many steps each of the walkers takes.
# Use the solver to run MCMC
ml2.solve(
solver=s,
initial=False,
tmin="1990",
steps=1000,
tune=True,
report=False,
)
emcee: Exception while calling your likelihood function:
params: [ 3.03721704e-01 8.38272778e-01 1.84133330e+02 -7.82482828e-01
1.03450968e+00 4.01019955e-03 6.74997734e-01]
args: (False, None, None)
kwargs: {}
exception:
