Preprocessing user-provided time series#
Developed by D. Brakenhoff, Artesia, R Caljé, Artesia and R.A. Collenteur, Eawag, January (2021-2023)
This notebooks shows how to solve the most common errors that arise during the validation of the user provided time series. After showing how to deal with some of the easier errors, we will dive into the topic of making time series equidistant. For this purpose Pastas contains a lot of helper functions.
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pastas as ps
ps.show_versions()
Pastas version: 1.8.0b
Python version: 3.11.10
NumPy version: 2.0.2
Pandas version: 2.2.3
SciPy version: 1.15.0
Matplotlib version: 3.10.0
Numba version: 0.60.0
DeprecationWarning: As of Pastas 1.5, no noisemodel is added to the pastas Model class by default anymore. To solve your model using a noisemodel, you have to explicitly add a noisemodel to your model before solving. For more information, and how to adapt your code, please see this issue on GitHub: https://github.com/pastas/pastas/issues/735
1. Validating the time series, what is checked?#
Let us first look at the docstring of the ps.validate_stress method, which can be used to automatically check user-provided input time series. This method is also used internally in Pastas to check all user provided time series. For the stresses ps.validate_stress is used and for the oseries the ps.validate_oseries is used. The only difference between these methods is that the oseries are not checked for equidistant time series.
?ps.validate_stress
a. If the time series is a DataFrame#
index = pd.date_range("2000-01-01", "2000-01-10")
series = pd.DataFrame(data=[np.arange(10.0)], index=index)
# Here's error message returned by Pastas
# ps.validate_stress(series)
series.iloc[:, 0] # Simply select the first column
2000-01-01 0.0
2000-01-02 0.0
2000-01-03 0.0
2000-01-04 0.0
2000-01-05 0.0
2000-01-06 0.0
2000-01-07 0.0
2000-01-08 0.0
2000-01-09 0.0
2000-01-10 0.0
Freq: D, Name: 0, dtype: float64
b. If values are not floats#
index = pd.date_range("2000-01-01", "2000-01-10")
series = pd.Series(data=range(10), index=index, name="Stress")
# Here's error message returned by Pastas
# ps.validate_stress(series)
# Here is a possible fix to this issue
series = series.astype(float)
c. If the index is not a datetimeindex#
series = pd.Series(data=np.arange(10.0), index=range(10), name="Stress")
# Here's error message returned by Pastas
# ps.validate_stress(series)
# Here is a possible fix to this issue
series.index = pd.to_datetime(series.index)
ps.validate_stress(series)
True
d. If index is not monotonically increasing#
index = pd.to_datetime(["2000-01-01", "2000-01-03", "2000-01-02", "2000-01-4"])
series = pd.Series(data=np.arange(4.0), index=index, name="Stress")
# Here's error message returned by Pastas
ps.validate_stress(series)
The time-indices of series Stress are not monotonically increasing. Try to use `series.sort_index()` to fix it.
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
Cell In[9], line 5
2 series = pd.Series(data=np.arange(4.0), index=index, name="Stress")
4 # Here's error message returned by Pastas
----> 5 ps.validate_stress(series)
File ~/checkouts/readthedocs.org/user_builds/pastas/envs/latest/lib/python3.11/site-packages/pastas/timeseries.py:644, in validate_stress(series)
610 def validate_stress(series: Series):
611 """Method to validate user-provided stress input time series.
612
613 Parameters
(...)
642 >>> ps.validate_stress(series)
643 """
--> 644 return _validate_series(series, equidistant=True)
File ~/checkouts/readthedocs.org/user_builds/pastas/envs/latest/lib/python3.11/site-packages/pastas/timeseries.py:756, in _validate_series(series, equidistant)
751 msg = (
752 "The time-indices of series %s are not monotonically increasing. Try "
753 "to use `series.sort_index()` to fix it."
754 )
755 logger.error(msg, name)
--> 756 raise ValueError(msg % name)
758 # 6. Make sure there are no duplicate indices
759 if not series.index.is_unique:
ValueError: The time-indices of series Stress are not monotonically increasing. Try to use `series.sort_index()` to fix it.
# Here is a possible fix to this issue
series = series.sort_index()
ps.validate_stress(series)
True
e. If the index has duplicate indices#
index = pd.to_datetime(["2000-01-01", "2000-01-02", "2000-01-02", "2000-01-3"])
series = pd.Series(data=np.arange(4.0), index=index, name="Stress")
# Here's error message returned by Pastas
ps.validate_stress(series)
duplicate time-indexes were found in the time series Stress. Make sure there are no duplicate indices. For example by `grouped = series.groupby(level=0); series = grouped.mean()`or `series = series.loc[~series.index.duplicated(keep='first/last')]`
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
Cell In[11], line 5
2 series = pd.Series(data=np.arange(4.0), index=index, name="Stress")
4 # Here's error message returned by Pastas
----> 5 ps.validate_stress(series)
File ~/checkouts/readthedocs.org/user_builds/pastas/envs/latest/lib/python3.11/site-packages/pastas/timeseries.py:644, in validate_stress(series)
610 def validate_stress(series: Series):
611 """Method to validate user-provided stress input time series.
612
613 Parameters
(...)
642 >>> ps.validate_stress(series)
643 """
--> 644 return _validate_series(series, equidistant=True)
File ~/checkouts/readthedocs.org/user_builds/pastas/envs/latest/lib/python3.11/site-packages/pastas/timeseries.py:767, in _validate_series(series, equidistant)
760 msg = (
761 "duplicate time-indexes were found in the time series %s. Make sure "
762 "there are no duplicate indices. For example by "
763 "`grouped = series.groupby(level=0); series = grouped.mean()`"
764 "or `series = series.loc[~series.index.duplicated(keep='first/last')]`"
765 )
766 logger.error(msg, name)
--> 767 raise ValueError(msg % name)
769 # 7. Make sure the time series has no nan-values
770 if series.hasnans:
ValueError: duplicate time-indexes were found in the time series Stress. Make sure there are no duplicate indices. For example by `grouped = series.groupby(level=0); series = grouped.mean()`or `series = series.loc[~series.index.duplicated(keep='first/last')]`
# Here is a possible fix to this issue
grouped = series.groupby(level=0)
series = grouped.mean()
ps.validate_stress(series)
True
f. If the time series has nan-values#
index = pd.date_range("2000-01-01", "2000-01-10")
series = pd.Series(data=np.arange(10.0), index=index, name="Stress")
series.loc["2000-01-05"] = np.nan
# Here's warning message returned by Pastas
ps.validate_stress(series)
The Time Series 'Stress' has nan-values. Pastas will use the fill_nan settings to fill up the nan-values.
True
# Here is a possible fix to this issue for oseries
series.dropna() # simply drop the nan-values
# Here is a possible fix to this issue for stresses
series = series.fillna(series.mean()) # For example for water levels
series = series.fillna(0.0) # For example for precipitation
series = series.interpolate(method="time") # For example for evaporation
2. If a stress time series has non-equidistant time steps#
# Create timeseries
freq = "6H"
idx0 = pd.date_range("2000-01-01", freq=freq, periods=7).tolist()
idx0[3] = idx0[3] + pd.to_timedelta(1, "H")
series = pd.Series(index=idx0, data=np.arange(len(idx0), dtype=float), name="Stress")
# Here's error message return by Pastas
ps.validate_stress(series)
'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version. Please use 'h' instead of 'H'.The frequency of the index of time series Stress could not be inferred. Please provide a time series with a regular time step.
---------------------------------------------------------------------------
ValueError Traceback (most recent call last)
Cell In[15], line 8
5 series = pd.Series(index=idx0, data=np.arange(len(idx0), dtype=float), name="Stress")
7 # Here's error message return by Pastas
----> 8 ps.validate_stress(series)
File ~/checkouts/readthedocs.org/user_builds/pastas/envs/latest/lib/python3.11/site-packages/pastas/timeseries.py:644, in validate_stress(series)
610 def validate_stress(series: Series):
611 """Method to validate user-provided stress input time series.
612
613 Parameters
(...)
642 >>> ps.validate_stress(series)
643 """
--> 644 return _validate_series(series, equidistant=True)
File ~/checkouts/readthedocs.org/user_builds/pastas/envs/latest/lib/python3.11/site-packages/pastas/timeseries.py:785, in _validate_series(series, equidistant)
780 msg = (
781 "The frequency of the index of time series %s could not be "
782 "inferred. Please provide a time series with a regular time step."
783 )
784 logger.error(msg, name)
--> 785 raise ValueError(msg % name)
787 # If all checks are passed, return True
788 return True
ValueError: The frequency of the index of time series Stress could not be inferred. Please provide a time series with a regular time step.

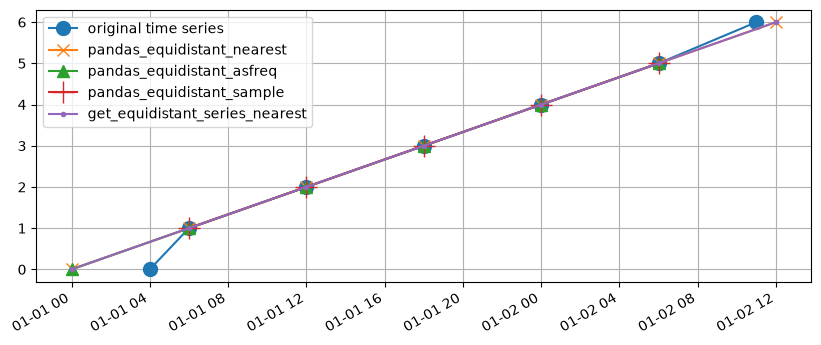

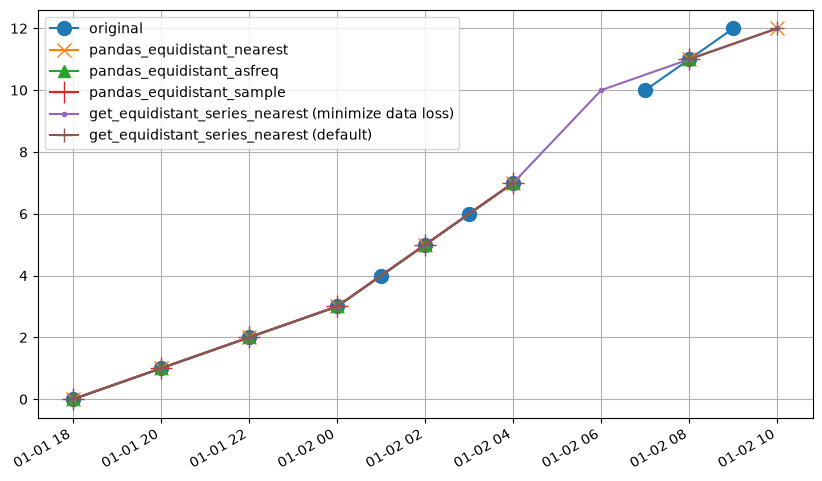

Pastas contains some convenience functions for creating equidistant time series. The method for creating an equidistant time series depends on the type of stress and different methods are used for for fluxes (e.g. precipitation, evaporation, pumping discharge) and levels (e.g. head, water levels). These methods are presented in the next sections.
Creating equidistant time series for fluxes#
There are several methods in Pandas to create equidistant series. A flux describes a measured or logged quantity over a period of time, resulting in a pandas Series. In this series, each flux is assigned a timestamp in the index. In Pastas, we assume the timestamp is at the end of the period that belongs to each measurement. This means that the precipitation of march 5 2022 gets the timestamp ‘2022-03-06 00:00:00’ (which can be counter-intuitive, as the index is now a day later). Therefore, when using Pandas resample methods, we add two parameters: closed=’right’ and label=’right’. So given this series of precipitation in mm:
# plot the original series
series
2000-01-01 00:00:00 0.0
2000-01-01 06:00:00 1.0
2000-01-01 12:00:00 2.0
2000-01-01 19:00:00 3.0
2000-01-02 00:00:00 4.0
2000-01-02 06:00:00 5.0
2000-01-02 12:00:00 6.0
Name: Stress, dtype: float64
using "right" would yield:
series.resample("12H", closed="right", label="right").sum()
'H' is deprecated and will be removed in a future version, please use 'h' instead.
2000-01-01 00:00:00 0.0
2000-01-01 12:00:00 3.0
2000-01-02 00:00:00 7.0
2000-01-02 12:00:00 11.0
Freq: 12h, Name: Stress, dtype: float64
which is logical because over the first 12 hours (between 01-01 00:00:00 and 01-01 12:00:00) 3mm of precipitation fell. However, using "left" would yield:
series.resample("12H", closed="left", label="left").sum()
'H' is deprecated and will be removed in a future version, please use 'h' instead.
2000-01-01 00:00:00 1.0
2000-01-01 12:00:00 5.0
2000-01-02 00:00:00 9.0
2000-01-02 12:00:00 6.0
Freq: 12h, Name: Stress, dtype: float64
Pastas helps users with a simple wrapper around the pandas resample function with setting “right” keyword arguments for closed and label:
resampler = pastas.timeseries_utils.resample(series, freq).
When this resampler is return series can easily be interpolated, summed or averaged using all resample methods available in the Pandas library.
ps.timeseries_utils.resample(
series, "12H"
).sum() # gives the same as series.resample("12H", closed="right", label="right").sum()
'H' is deprecated and will be removed in a future version, please use 'h' instead.
2000-01-01 00:00:00 0.0
2000-01-01 12:00:00 3.0
2000-01-02 00:00:00 7.0
2000-01-02 12:00:00 11.0
Freq: 12h, Name: Stress, dtype: float64
The resample-method of pandas basically is a groupby-method. This creates problems when there is not a single measurement in each group / bin.
series.resample("6H", closed="right", label="right").mean()
'H' is deprecated and will be removed in a future version, please use 'h' instead.
2000-01-01 00:00:00 0.0
2000-01-01 06:00:00 1.0
2000-01-01 12:00:00 2.0
2000-01-01 18:00:00 NaN
2000-01-02 00:00:00 3.5
2000-01-02 06:00:00 5.0
2000-01-02 12:00:00 6.0
Freq: 6h, Name: Stress, dtype: float64
This is demponstrated by the NaN at 2000-01-01 18:00:00. Also when there are two values in a group, these are averaged, even though one of the values only counts for one hour, and the other for 6 hours. This is demonstrated by the value of 3.5 at 2000-01-02 00:00:00.
Because of these problems there is a method called ‘timestep_weighted_resample’ in Pastas. This method assumes the index is at the end of the period that belongs to each measurement, just like the rest of Pastas. Using this assumption, the method can calculate a new series, using an overlapping period weighted average:
new_index = pd.date_range(series.index[0], series.index[-1], freq="12H")
ps.ts.timestep_weighted_resample(series, new_index)
'H' is deprecated and will be removed in a future version, please use 'h' instead.
2000-01-01 00:00:00 NaN
2000-01-01 12:00:00 1.500000
2000-01-02 00:00:00 3.416667
2000-01-02 12:00:00 5.500000
Freq: 12h, dtype: float64
We see the value at 2000-01-02 00:00:00 is now 3.833333, which is 1/6th of 3.0 (the original value at 2000-01-01 19:00:00) and 5/6th of 4.0 (the original value at 2000-01-02 00:00:00). This methods sets a NaN for the value at 2000-01-01 00:00:00, as the length of the period cannot be determined.
The following examples showcase some potentially useful operations for which
timestep_weighted_resample can be used.
Example 1: Resample monthly pumping volumes to daily values#
Monthly aggregated data is common, and in this synthetic example we’ll assume that we received data for monthly pumping rate from a well. We want to convert these to daily data so that we can create a time series model with a daily time step.
First let’s invent some data.
# monthly discharge volumes
# volume on 1 february 2022 at 00:00 is the volume for month of january
index = pd.date_range("2022-02-01", "2023-01-01", freq="MS")
discharge = np.arange(12) * 100
Q0 = pd.Series(index=index, data=discharge)
Next, use timestep_weighted_resample to calculate a daily time series for
well pumping.
Note: the unit of the resulting daily time series has not changed! This means the daily value is assumed to be the same as the monthly value. So take note of your units when modeling resampled time series with Pastas!
# define a new index
new_index = pd.date_range("2022-01-01", "2022-12-31", freq="D")
# resample to daily data
Q_daily = ps.ts.timestep_weighted_resample(Q0, new_index)

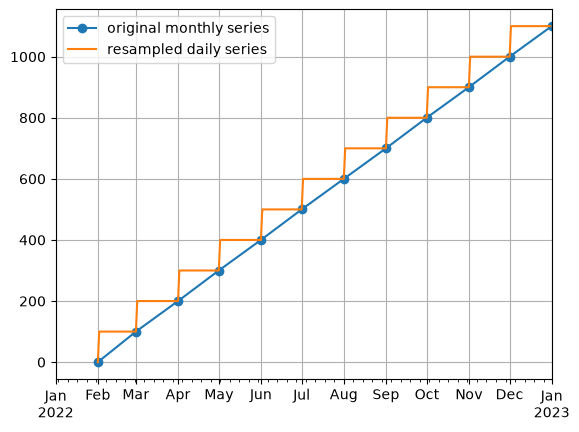

# plot the comparison
ax = Q0.plot(marker="o", label="original monthly series")
Q_daily.plot(ax=ax, label="resampled daily series")
ax.legend()
ax.grid(True)

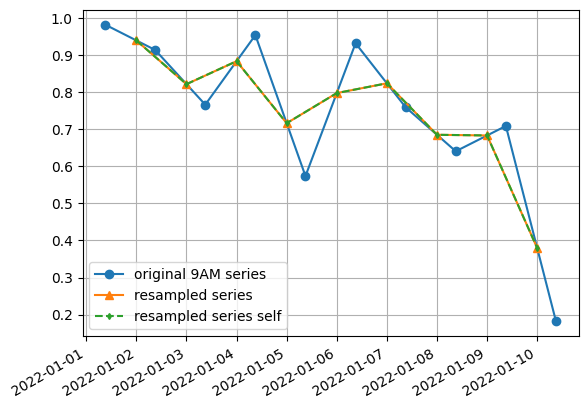

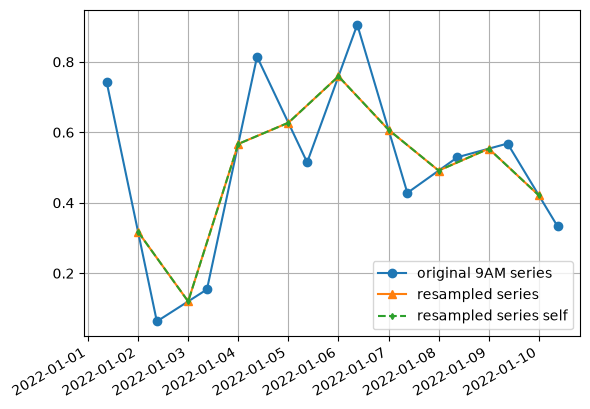

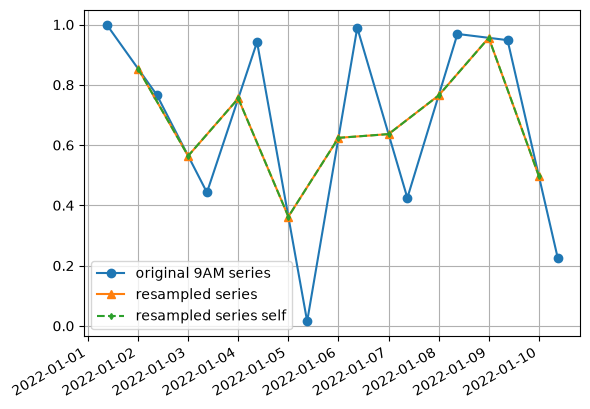

Example 2: Resample precipitation between 9AM-9AM to 12AM-12AM#
In the Netherlands, the rainfall gauges that are measured daily measure between
9 AM one day and 9 AM the next day. For time series models with a daily
timestep it is often simpler to use time series represent one full day (from 12
AM - 12 AM). We can do this ourselved by applying the formula:
\(data_{24}[t] = \frac{9}{24}data_{9}[t] + \frac{15}{24}data_{9}[t+1]\) but once again,
timestep_weighted_resample can help us calculate this resampled time series.
First we invent some new random data.
index = pd.date_range("2022-01-01 09:00:00", "2022-01-10 09:00:00")
data = np.random.rand(len(index))
p0 = pd.Series(index=index, data=data)
p0
2022-01-01 09:00:00 0.950135
2022-01-02 09:00:00 0.629723
2022-01-03 09:00:00 0.404319
2022-01-04 09:00:00 0.944184
2022-01-05 09:00:00 0.304577
2022-01-06 09:00:00 0.081539
2022-01-07 09:00:00 0.165384
2022-01-08 09:00:00 0.477962
2022-01-09 09:00:00 0.154708
2022-01-10 09:00:00 0.467247
Freq: D, dtype: float64
The result is shown below. Note how each resampled point represents the weighted average of the two surrounding observations, which is what we want.
# create a new daily index, running from 12AM-12AM
new_index = pd.date_range(p0.index[0].normalize(), p0.index[-1].normalize())
# resample time series
p_resample = ps.ts.timestep_weighted_resample(p0, new_index)
# try it ourselves:
p_self = [
data[i] * (h / 24) + data[i + 1] * ((24 - h) / 24)
for i, h in enumerate(index.hour.values[1:])
]
p_resample_self = pd.Series(p_self, new_index[1:])
# plot comparison
ax = p0.plot(marker="o", label="original 9AM series")
p_resample.plot(marker="^", ax=ax, label="resampled series")
p_resample_self.plot(
marker="d", markersize=3, linestyle="--", ax=ax, label="resampled series self"
)
ax.legend()
ax.grid(True)
Example 3: Resample hourly data to daily data#
Another frequent pre-processing step is converting hourly data to daily values.
This can be done with simple pandas methods, but timestep_weighted_resample
can also handle this calculation, with the added advantage of supporting
irregular time steps in the new time series.
In this example we’ll simply convert an hourly time series into a daily time series.
# create some hourly data
index = pd.date_range("2022-01-01 00:00:00", "2022-01-03 00:00:00", freq="H")
data = np.hstack([np.arange(len(index) // 2), 24 * np.ones(len(index) // 2 + 1)])
# convert to series
p0 = pd.Series(index=index, data=data)
p0.head()
'H' is deprecated and will be removed in a future version, please use 'h' instead.
2022-01-01 00:00:00 0.0
2022-01-01 01:00:00 1.0
2022-01-01 02:00:00 2.0
2022-01-01 03:00:00 3.0
2022-01-01 04:00:00 4.0
Freq: h, dtype: float64

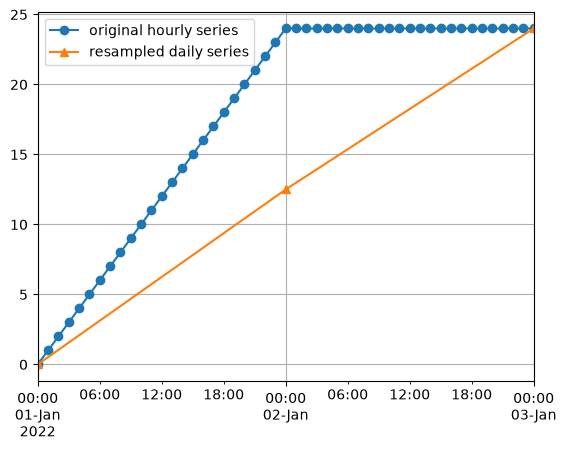

The result shows that the resampled value at the end of each day represents the average value of that day, which is what we would expect.
# create a new daily index
new_index = pd.date_range(p0.index[0].normalize(), p0.index[-1].normalize(), freq="D")
# resample measurements
p_resample = ps.ts.timestep_weighted_resample(p0, new_index)
# plot the comparison
ax = p0.plot(marker="o", label="original hourly series")
p_resample.plot(marker="^", ax=ax, label="resampled daily series")
ax.legend()
ax.grid(True)
Creating equidistant time series for (ground)waterlevels#
The following methods are used for time series that do not need to be resampled. For example, the measurements represent a state (e.g. head, water level) and either an equidistant sample is taken from the original time series, or observations are shifted slightly, to create an equidistant time series. This can be done in a number of different ways:
pandas_equidistant_sampletakes a sample at equidistant timesteps from the original series, at the user-specified frequency. For very irregular time series lots of observations will be lost. The advantage is that observations are not shifted in time, unlike in the other methods.pandas_equidistant_nearestcreates a new equidistant index with the user-specified frequency, thenSeries.reindex()is used withmethod="nearest"which will shift certain observations in time to fill the equidistant time series. This method can introduce duplicates (i.e. an observation that is used more than once) in the final result.pandas_equidistant_asfreqrounds the series index to the user-specified frequency, then drops any duplicates before callingSeries.asfreqwith the user-specified frequency. This ensures no duplicates are contained in the resulting time series.get_equidistant_timeseries_nearestcreates a equidistant time series minimizing the number of dropped points and ensuring that each observation from the original time series is used only once in the resulting equidistant time series. This method
The different methods are compared in the following four examples.
Note: in terms of performance the pandas methods are much faster.
Example 1#
Lets create a timeseries spaced which is normally spaced with a frequency of 6 hours. The first and last measurement are shifted a bit later and earlier respectively.
The different methods for creating equidistant time series for levels are compared.
# Create time series
freq = "6H"
idx0 = pd.date_range("2000-01-01", freq=freq, periods=7).tolist()
idx0[0] = pd.Timestamp("2000-01-01 04:00:00")
idx0[-1] = pd.Timestamp("2000-01-02 11:00:00")
series = pd.Series(index=idx0, data=np.arange(len(idx0), dtype=float))
# Create equidistant time series with Pastas
s_pd1 = ps.ts.pandas_equidistant_sample(series, freq)
s_pd2 = ps.ts.pandas_equidistant_nearest(series, freq)
s_pd3 = ps.ts.pandas_equidistant_asfreq(series, freq)
s_pastas = ps.ts.get_equidistant_series_nearest(series, freq)
# Create figure
plt.figure(figsize=(10, 4))
ax = series.plot(
marker="o",
label="original time series",
ms=10,
)
s_pd2.plot(ax=ax, marker="x", ms=8, label="pandas_equidistant_nearest")
s_pd3.plot(ax=ax, marker="^", ms=8, label="pandas_equidistant_asfreq")
s_pd1.plot(ax=ax, marker="+", ms=16, label="pandas_equidistant_sample")
s_pastas.plot(ax=ax, marker=".", label="get_equidistant_series_nearest")
ax.grid(True)
ax.legend(loc="best")
ax.set_xlabel("")
'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.
Text(0.5, 0, '')
Both the pandas_equidistant_nearest and pandas_equidistant_asfreq methods and get_equidistant_series_nearest show the observations at the beginning and the end of the time series are shifted to the nearest equidistant timestamp. The pandas_equidistant_sample method drops 2 datapoints because they’re measured at different time offsets.
# some helper functions to show differences in performance
def values_kept(s, original):
diff = set(original.dropna().values) & set(s.dropna().values)
return len(diff)
def n_duplicates(s):
return (s.value_counts() >= 2).sum()
dfall = pd.concat([series, s_pd1, s_pd2, s_pd3, s_pastas], axis=1, sort=True)
dfall.columns = [
"original",
"pandas_equidistant_sample",
"pandas_equidistant_nearest",
"pandas_equidistant_asfreq",
"get_equidistant_series_nearest",
]
dfall
| original | pandas_equidistant_sample | pandas_equidistant_nearest | pandas_equidistant_asfreq | get_equidistant_series_nearest | |
|---|---|---|---|---|---|
| 2000-01-01 00:00:00 | NaN | NaN | 0.0 | 0.0 | 0.0 |
| 2000-01-01 04:00:00 | 0.0 | NaN | NaN | NaN | NaN |
| 2000-01-01 06:00:00 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| 2000-01-01 12:00:00 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| 2000-01-01 18:00:00 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| 2000-01-02 00:00:00 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 |
| 2000-01-02 06:00:00 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| 2000-01-02 11:00:00 | 6.0 | NaN | NaN | NaN | NaN |
| 2000-01-02 12:00:00 | NaN | NaN | 6.0 | NaN | 6.0 |
The following table summarizes the results, showing how many values from the original time series are kept and how many duplicates are contained in the final result.
valueskept = dfall.apply(values_kept, args=(dfall["original"],))
valueskept.name = "values kept"
duplicates = dfall.apply(n_duplicates)
duplicates.name = "duplicates"
pd.concat([valueskept, duplicates], axis=1)
| values kept | duplicates | |
|---|---|---|
| original | 7 | 0 |
| pandas_equidistant_sample | 5 | 0 |
| pandas_equidistant_nearest | 7 | 0 |
| pandas_equidistant_asfreq | 6 | 0 |
| get_equidistant_series_nearest | 7 | 0 |
Example 2#
# Create timeseries
freq = "D"
idx0 = pd.date_range("2000-01-01", freq=freq, periods=7).tolist()
idx0[0] = pd.Timestamp("2000-01-01 09:00:00")
del idx0[2]
del idx0[2]
idx0[-2] = pd.Timestamp("2000-01-06 13:00:00")
idx0[-1] = pd.Timestamp("2000-01-06 23:00:00")
series = pd.Series(index=idx0, data=np.arange(len(idx0), dtype=float))
# Create equidistant timeseries
s_pd1 = ps.ts.pandas_equidistant_sample(series, freq)
s_pd2 = ps.ts.pandas_equidistant_nearest(series, freq)
s_pd3 = ps.ts.pandas_equidistant_asfreq(series, freq)
s_pastas = ps.ts.get_equidistant_series_nearest(series, freq)
# Create figure
plt.figure(figsize=(10, 4))
ax = series.plot(marker="o", label="original", ms=10)
s_pd2.plot(ax=ax, marker="x", ms=10, label="pandas_equidistant_nearest")
s_pd3.plot(ax=ax, marker="^", ms=8, label="pandas_equidistant_asfreq")
s_pd1.plot(ax=ax, marker="+", ms=16, label="pandas_equidistant_sample")
s_pastas.plot(ax=ax, marker=".", label="get_equidistant_series_nearest")
ax.grid(True)
ax.legend(loc="best")
ax.set_xlabel("")
Text(0.5, 0, '')

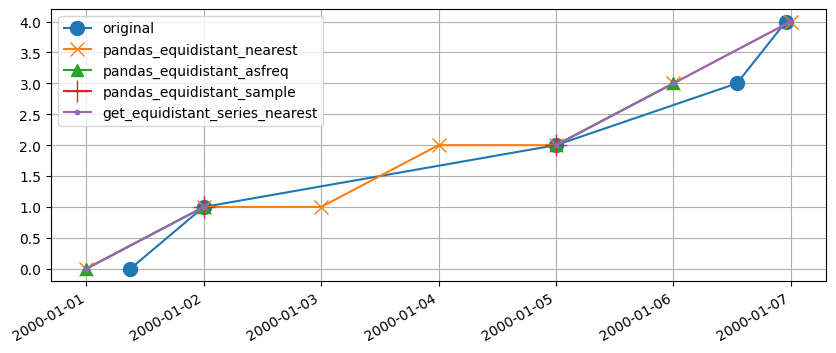

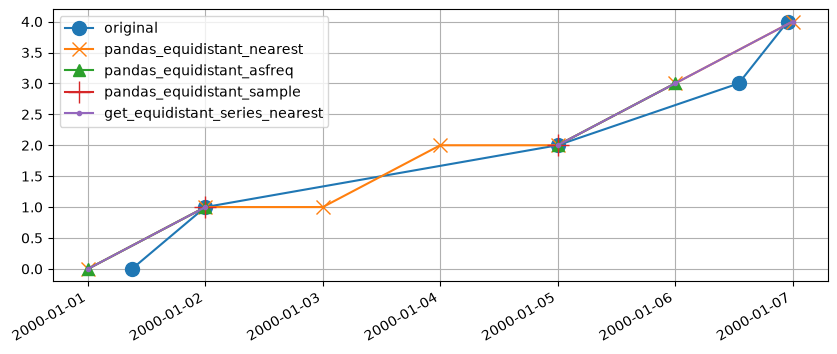

In this example, the shortcomings of pandas_equidistant_nearest are clearly visible. It duplicates observations from the original timeseries to fill the gaps. This can be solved by passing e.g. tolerance="0.99{freq}" to series.reindex() in which case the gaps will not be filled. However, with very irregular timesteps this is not guaranteed to work and duplicates may still occur. The pandas_equidistant_asfreq and pastas methods work as expected and uses the available data to create a reasonable equidistant timeseries from the original data. The pandas_equidistant_sample method is only able to keep two observations from the original series in this example.
dfall = pd.concat([series, s_pd1, s_pd2, s_pd3, s_pastas], axis=1, sort=True)
dfall.columns = [
"original",
"pandas_equidistant_sample",
"pandas_equidistant_nearest",
"pandas_equidistant_asfreq",
"get_equidistant_series_nearest",
]
dfall
| original | pandas_equidistant_sample | pandas_equidistant_nearest | pandas_equidistant_asfreq | get_equidistant_series_nearest | |
|---|---|---|---|---|---|
| 2000-01-01 00:00:00 | NaN | NaN | 0.0 | 0.0 | 0.0 |
| 2000-01-01 09:00:00 | 0.0 | NaN | NaN | NaN | NaN |
| 2000-01-02 00:00:00 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| 2000-01-03 00:00:00 | NaN | NaN | 1.0 | NaN | NaN |
| 2000-01-04 00:00:00 | NaN | NaN | 2.0 | NaN | NaN |
| 2000-01-05 00:00:00 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| 2000-01-06 00:00:00 | NaN | NaN | 3.0 | 3.0 | 3.0 |
| 2000-01-06 13:00:00 | 3.0 | NaN | NaN | NaN | NaN |
| 2000-01-06 23:00:00 | 4.0 | NaN | NaN | NaN | NaN |
| 2000-01-07 00:00:00 | NaN | NaN | 4.0 | NaN | 4.0 |
The following table summarizes the results, showing how many values from the original time series are kept and how many duplicates are contained in the final result.
valueskept = dfall.apply(values_kept, args=(dfall["original"],))
valueskept.name = "values kept"
duplicates = dfall.apply(n_duplicates)
duplicates.name = "duplicates"
pd.concat([valueskept, duplicates], axis=1)
| values kept | duplicates | |
|---|---|---|
| original | 5 | 0 |
| pandas_equidistant_sample | 2 | 0 |
| pandas_equidistant_nearest | 5 | 2 |
| pandas_equidistant_asfreq | 4 | 0 |
| get_equidistant_series_nearest | 5 | 0 |
Example 3#
# Create timeseries
freq = "2H"
freq2 = "1H"
idx0 = pd.date_range("2000-01-01 18:00:00", freq=freq, periods=3).tolist()
idx1 = pd.date_range("2000-01-02 01:30:00", freq=freq2, periods=10).tolist()
idx0 = idx0 + idx1
idx0[3] = pd.Timestamp("2000-01-02 01:31:00")
series = pd.Series(index=idx0, data=np.arange(len(idx0), dtype=float))
series.iloc[8:10] = np.nan
# Create equidistant timeseries
s_pd1 = ps.ts.pandas_equidistant_sample(series, freq)
s_pd2 = ps.ts.pandas_equidistant_nearest(series, freq)
s_pd3 = ps.ts.pandas_equidistant_asfreq(series, freq)
s_pastas1 = ps.ts.get_equidistant_series_nearest(series, freq, minimize_data_loss=True)
s_pastas2 = ps.ts.get_equidistant_series_nearest(series, freq, minimize_data_loss=False)
# Create figure
plt.figure(figsize=(10, 6))
ax = series.plot(marker="o", label="original", ms=10)
s_pd2.plot(ax=ax, marker="x", ms=10, label="pandas_equidistant_nearest")
s_pd3.plot(ax=ax, marker="^", ms=8, label="pandas_equidistant_asfreq")
s_pd1.plot(ax=ax, marker="+", ms=16, label="pandas_equidistant_sample")
s_pastas1.plot(
ax=ax, marker=".", ms=6, label="get_equidistant_series_nearest (minimize data loss)"
)
s_pastas2.plot(
ax=ax, marker="+", ms=10, label="get_equidistant_series_nearest (default)"
)
ax.grid(True)
ax.legend(loc="best")
ax.set_xlabel("")
'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version. Please use 'h' instead of 'H'.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.
Text(0.5, 0, '')

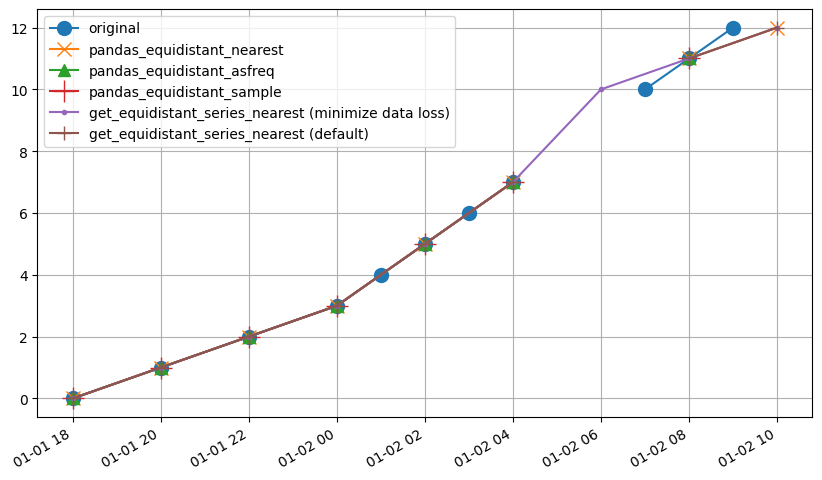

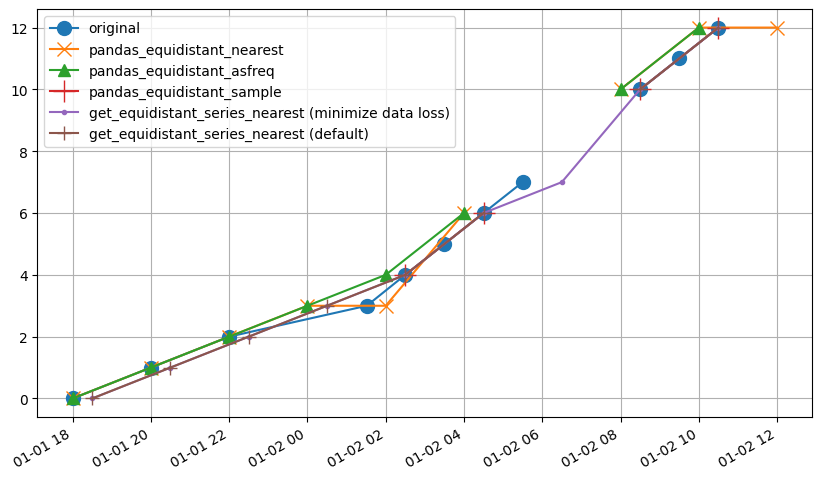

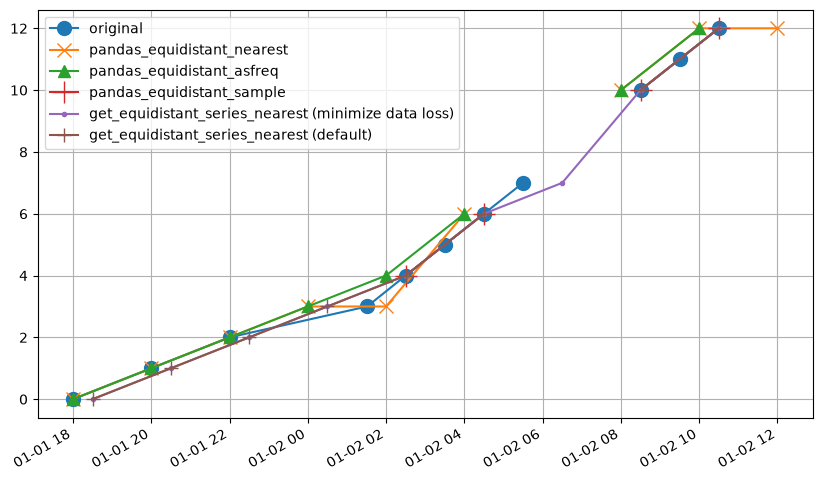

In this example we can observe the following behavior in each method:
pandas_equidistant_sampleretains 4 values.pandas_equidistant_nearestduplicates some observations in the equidistant timeseries.pandas_equidistant_asfreqdoes quite well, but drops some observations near the gap in the original timeseries.get_equidistant_series_nearestmethod misses an observation right after the gap in the original timeseries.get_equidistant_series_nearestwithminimize_data_loss=Truefills this gap, using as much data as possible from the original timeseries.
The results from the pandas_equidistant_asfreq and get_equidistant_series_nearest methods both work well, but the latter method retains more of the original data.
dfall = pd.concat(
[series, s_pd1, s_pd2, s_pd3, s_pastas2, s_pastas1], axis=1, sort=True
)
dfall.columns = [
"original",
"pandas_equidistant_sample",
"pandas_equidistant_nearest",
"pandas_equidistant_asfreq",
"get_equidistant_series_nearest (default)",
"get_equidistant_series_nearest (minimize data loss)",
]
dfall
| original | pandas_equidistant_sample | pandas_equidistant_nearest | pandas_equidistant_asfreq | get_equidistant_series_nearest (default) | get_equidistant_series_nearest (minimize data loss) | |
|---|---|---|---|---|---|---|
| 2000-01-01 18:00:00 | 0.0 | NaN | 0.0 | 0.0 | NaN | NaN |
| 2000-01-01 18:30:00 | NaN | NaN | NaN | NaN | 0.0 | 0.0 |
| 2000-01-01 20:00:00 | 1.0 | NaN | 1.0 | 1.0 | NaN | NaN |
| 2000-01-01 20:30:00 | NaN | NaN | NaN | NaN | 1.0 | 1.0 |
| 2000-01-01 22:00:00 | 2.0 | NaN | 2.0 | 2.0 | NaN | NaN |
| 2000-01-01 22:30:00 | NaN | NaN | NaN | NaN | 2.0 | 2.0 |
| 2000-01-02 00:00:00 | NaN | NaN | 3.0 | 3.0 | NaN | NaN |
| 2000-01-02 00:30:00 | NaN | NaN | NaN | NaN | 3.0 | 3.0 |
| 2000-01-02 01:31:00 | 3.0 | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 02:00:00 | NaN | NaN | 3.0 | 4.0 | NaN | NaN |
| 2000-01-02 02:30:00 | 4.0 | 4.0 | NaN | NaN | 4.0 | 4.0 |
| 2000-01-02 03:30:00 | 5.0 | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 04:00:00 | NaN | NaN | 6.0 | 6.0 | NaN | NaN |
| 2000-01-02 04:30:00 | 6.0 | 6.0 | NaN | NaN | 6.0 | 6.0 |
| 2000-01-02 05:30:00 | 7.0 | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 06:00:00 | NaN | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 06:30:00 | NaN | NaN | NaN | NaN | NaN | 7.0 |
| 2000-01-02 07:30:00 | NaN | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 08:00:00 | NaN | NaN | 10.0 | 10.0 | NaN | NaN |
| 2000-01-02 08:30:00 | 10.0 | 10.0 | NaN | NaN | 10.0 | 10.0 |
| 2000-01-02 09:30:00 | 11.0 | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 10:00:00 | NaN | NaN | 12.0 | 12.0 | NaN | NaN |
| 2000-01-02 10:30:00 | 12.0 | 12.0 | NaN | NaN | 12.0 | 12.0 |
| 2000-01-02 12:00:00 | NaN | NaN | 12.0 | NaN | NaN | NaN |
| 2000-01-02 12:30:00 | NaN | NaN | NaN | NaN | NaN | NaN |
The following table summarizes the results, showing how many values from the original time series are kept and how many duplicates are contained in the final result.
valueskept = dfall.apply(values_kept, args=(dfall["original"],))
valueskept.name = "values kept"
duplicates = dfall.apply(n_duplicates)
duplicates.name = "duplicates"
pd.concat([valueskept, duplicates], axis=1)
| values kept | duplicates | |
|---|---|---|
| original | 11 | 0 |
| pandas_equidistant_sample | 4 | 0 |
| pandas_equidistant_nearest | 7 | 2 |
| pandas_equidistant_asfreq | 8 | 0 |
| get_equidistant_series_nearest (default) | 8 | 0 |
| get_equidistant_series_nearest (minimize data loss) | 9 | 0 |
Example 4#
# Create timeseries
freq = "2H"
freq2 = "1H"
idx0 = pd.date_range("2000-01-01 18:00:00", freq=freq, periods=3).tolist()
idx1 = pd.date_range("2000-01-02 00:00:00", freq=freq2, periods=10).tolist()
idx0 = idx0 + idx1
series = pd.Series(index=idx0, data=np.arange(len(idx0), dtype=float))
series.iloc[8:10] = np.nan
# Create equidistant timeseries
s_pd1 = ps.ts.pandas_equidistant_sample(series, freq)
s_pd2 = ps.ts.pandas_equidistant_nearest(series, freq)
s_pd3 = ps.ts.pandas_equidistant_asfreq(series, freq)
s_pastas1 = ps.ts.get_equidistant_series_nearest(series, freq, minimize_data_loss=True)
s_pastas2 = ps.ts.get_equidistant_series_nearest(series, freq, minimize_data_loss=False)
# Create figure
plt.figure(figsize=(10, 6))
ax = series.plot(marker="o", label="original", ms=10)
s_pd2.plot(ax=ax, marker="x", ms=10, label="pandas_equidistant_nearest")
s_pd3.plot(ax=ax, marker="^", ms=8, label="pandas_equidistant_asfreq")
s_pd1.plot(ax=ax, marker="+", ms=16, label="pandas_equidistant_sample")
s_pastas1.plot(
ax=ax, marker=".", ms=6, label="get_equidistant_series_nearest (minimize data loss)"
)
s_pastas2.plot(
ax=ax, marker="+", ms=10, label="get_equidistant_series_nearest (default)"
)
ax.grid(True)
ax.legend(loc="best")
ax.set_xlabel("")
'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version. Please use 'h' instead of 'H'.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.'H' is deprecated and will be removed in a future version, please use 'h' instead.
Text(0.5, 0, '')
Similar to the previous example, get_equidistant_timeseries retains the most data from the original timeseries. In this case both the pandas_equidistant_asfreq and pandas_equidistant_nearest methods perform well, but do omit some of the original data at the end of the timeseries or near the gap in the original timeseries.
dfall = pd.concat(
[series, s_pd1, s_pd2, s_pd3, s_pastas2, s_pastas1], axis=1, sort=True
)
dfall.columns = [
"original",
"pandas_equidistant_sample",
"pandas_equidistant_nearest",
"pandas_equidistant_asfreq",
"get_equidistant_series_nearest (default)",
"get_equidistant_series_nearest (minimize data loss)",
]
dfall
| original | pandas_equidistant_sample | pandas_equidistant_nearest | pandas_equidistant_asfreq | get_equidistant_series_nearest (default) | get_equidistant_series_nearest (minimize data loss) | |
|---|---|---|---|---|---|---|
| 2000-01-01 18:00:00 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 | 0.0 |
| 2000-01-01 20:00:00 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| 2000-01-01 22:00:00 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| 2000-01-02 00:00:00 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0 |
| 2000-01-02 01:00:00 | 4.0 | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 02:00:00 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 | 5.0 |
| 2000-01-02 03:00:00 | 6.0 | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 04:00:00 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |
| 2000-01-02 05:00:00 | NaN | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 06:00:00 | NaN | NaN | NaN | NaN | NaN | 10.0 |
| 2000-01-02 07:00:00 | 10.0 | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 08:00:00 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 | 11.0 |
| 2000-01-02 09:00:00 | 12.0 | NaN | NaN | NaN | NaN | NaN |
| 2000-01-02 10:00:00 | NaN | NaN | 12.0 | NaN | 12.0 | 12.0 |
The following table summarizes the results, showing how many values from the original time series are kept and how many duplicates are contained in the final result.
valueskept = dfall.apply(values_kept, args=(dfall["original"],))
valueskept.name = "values kept"
duplicates = dfall.apply(n_duplicates)
duplicates.name = "duplicates"
pd.concat([valueskept, duplicates], axis=1)
| values kept | duplicates | |
|---|---|---|
| original | 11 | 0 |
| pandas_equidistant_sample | 7 | 0 |
| pandas_equidistant_nearest | 8 | 0 |
| pandas_equidistant_asfreq | 7 | 0 |
| get_equidistant_series_nearest (default) | 8 | 0 |
| get_equidistant_series_nearest (minimize data loss) | 9 | 0 |
